M74HC153B1R

M74HC153B1R Overview

This product is manufactured by STMicroelectronics. Decoders, Encoders, Multiplexers & Demultiplexers The product uses the 74HC logic family. The propagation delay time is 115 ns at 2 V, 23 ns at 4.5 V, 20 ns at 6 V. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. DIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a The M74HC153 is an high speed CMOS The height of the product is 5.1 mm. 0.5 to + 0.5 V Input Voltage 20 mm long This product has Dual circuit. Output current: 25 mA Output Voltage is 0.5 V to 0.5 V STMicroelectronics is a trusted brand for quality electronics Multiplexer. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 25 of 100 Logic ICs as subcategory 1. 0.057419 oz of Unit Weight

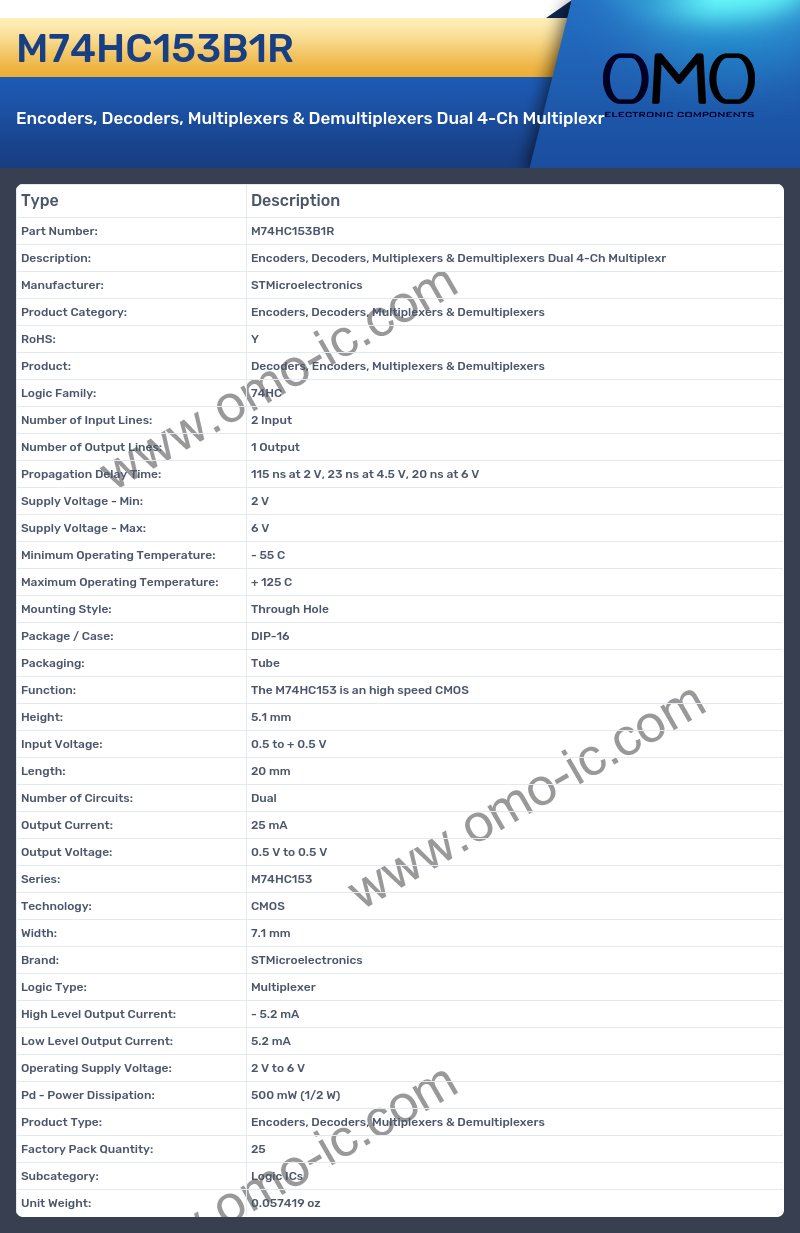

M74HC153B1R Image

M74HC153B1R Specifications

• Manufacturer: STMicroelectronics
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders, Encoders, Multiplexers & Demultiplexers
• Logic Family: 74HC
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 115 ns at 2 V, 23 ns at 4.5 V, 20 ns at 6 V
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: DIP-16
• Packaging: Tube
• Function: The M74HC153 is an high speed CMOS
• Height: 5.1 mm
• Input Voltage: 0.5 to + 0.5 V
• Length: 20 mm
• Number of Circuits: Dual
• Output Current: 25 mA
• Output Voltage: 0.5 V to 0.5 V
• Series: M74HC153
• Technology: CMOS
• Width: 7.1 mm
• Brand: STMicroelectronics
• Logic Type: Multiplexer
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.057419 oz
