M74HC4514RM13TR

M74HC4514RM13TR Overview

This product is manufactured by STMicroelectronics. Decoders, Encoders, Multiplexers & Demultiplexers The product uses the 74HC logic family. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-24 package/case type is utilized by this product. Reel packaging for easy dispensing t's a The M74HC4514 is an high speed CMOS 4 LINE TO 16 LINE SEGMENT DECODER WITH LATCHED INPUTS The height of the product is 2.45 mm. 0.5 V to + 0.5 V Input Voltage 15.6 mm long This product has Dual circuit. Output current: 25 mA Output Voltage is - 0.5 V to + 0.5 V STMicroelectronics is a trusted brand for quality electronics Decoders/Latches. Maximum supply current: 0.004 mA This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 1000 of 100 Logic ICs as subcategory 1. 0.038731 oz of Unit Weight

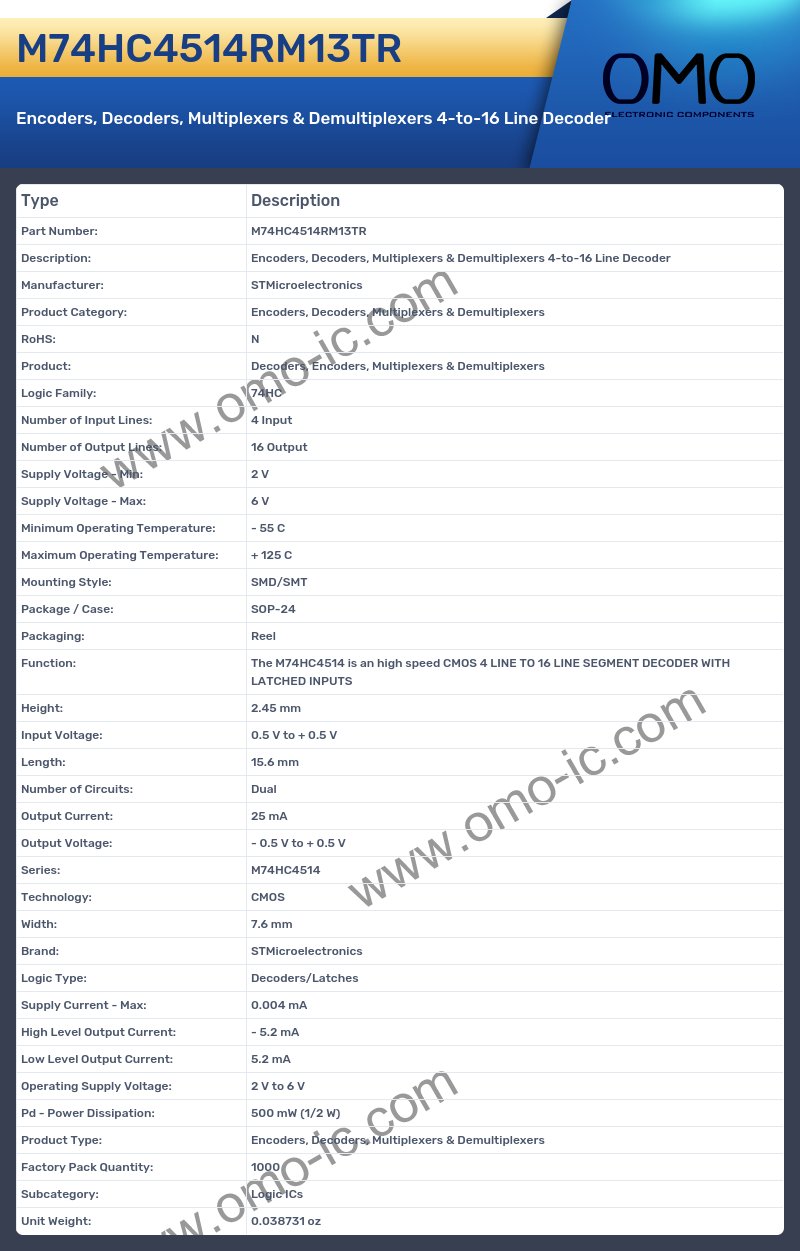

M74HC4514RM13TR Image

M74HC4514RM13TR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: N
• Product: Decoders, Encoders, Multiplexers & Demultiplexers
• Logic Family: 74HC
• Number of Input Lines: 4 Input
• Number of Output Lines: 16 Output
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-24
• Packaging: Reel
• Function: The M74HC4514 is an high speed CMOS 4 LINE TO 16 LINE SEGMENT DECODER WITH LATCHED INPUTS
• Height: 2.45 mm
• Input Voltage: 0.5 V to + 0.5 V
• Length: 15.6 mm
• Number of Circuits: Dual
• Output Current: 25 mA
• Output Voltage: - 0.5 V to + 0.5 V
• Series: M74HC4514
• Technology: CMOS
• Width: 7.6 mm
• Brand: STMicroelectronics
• Logic Type: Decoders/Latches
• Supply Current - Max: 0.004 mA
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 1000
• Subcategory: Logic ICs
• Unit Weight: 0.038731 oz
