MC9S08QL4CTJ

MC9S08QL4CTJ Overview

This product is manufactured by NXP. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product's S08 is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 4 kB. The Data RAM Size of this product is 256 B. The ADC Resolution of this product is 12 bit. 1.8 V to 3.6 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing MCU The Flash of this product is Flash. NXP Semiconductors is a trusted brand for quality electronics The RAM. Interface Type: Serial This product requires an 1.8 V to 3.6 V for proper operation. Yes regarding Moisture Sensitivity The product has 8 Channel ADC channels. 8-bit Microcontrollers - MCU product type 75 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.8 V This product is also known by the 935380409574 number of 934069005115.

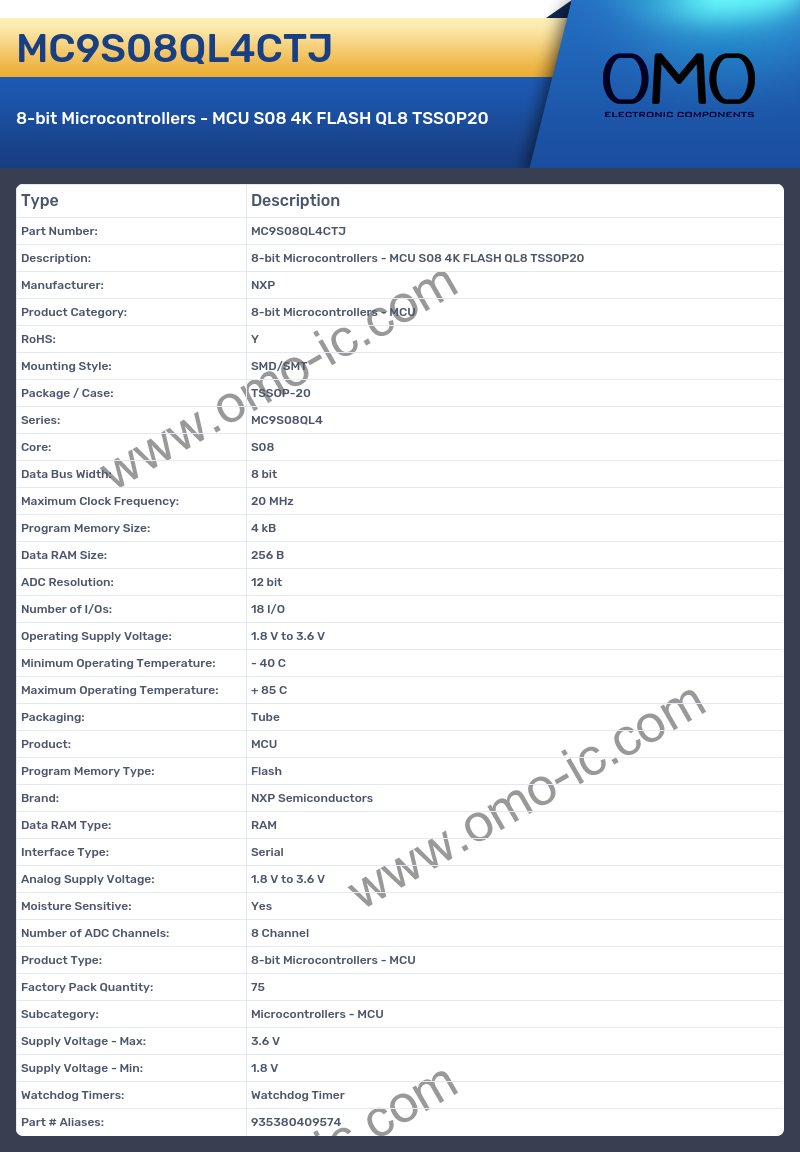

MC9S08QL4CTJ Image

MC9S08QL4CTJ Specifications

• Manufacturer: NXP
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Series: MC9S08QL4
• Core: S08
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 4 kB
• Data RAM Size: 256 B
• ADC Resolution: 12 bit
• Number of I/Os: 18 I/O
• Operating Supply Voltage: 1.8 V to 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Product: MCU
• Program Memory Type: Flash
• Brand: NXP Semiconductors
• Data RAM Type: RAM
• Interface Type: Serial
• Analog Supply Voltage: 1.8 V to 3.6 V
• Moisture Sensitive: Yes
• Number of ADC Channels: 8 Channel
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 75
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.8 V
• Watchdog Timers: Watchdog Timer
• Part # Aliases: 935380409574
