OPA541SM

OPA541SM Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-3-8 package/case type is utilized by this product. Supply Voltage - Max: 70 V This product is equipped with 1 Channel for efficient performance. This product has a 95 dB to 113 dB of 50 dB, ensuring reliable signal acquisition. This product has an 50 pA of 5 uA for precise signal processing. Supply Voltage - Min: 20 V The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Output Current Amplifier. The height of the product is 7.11 mm. 38.86 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 35 V. +/- 10 V minimum dual supply voltage 20 V to 70 V, +/- 10 V to +/- 35 V operating supply voltage range 125 W Op Amps - Operational Amplifiers product type 18 of 100 Amplifier ICs as subcategory

OPA541SM Image

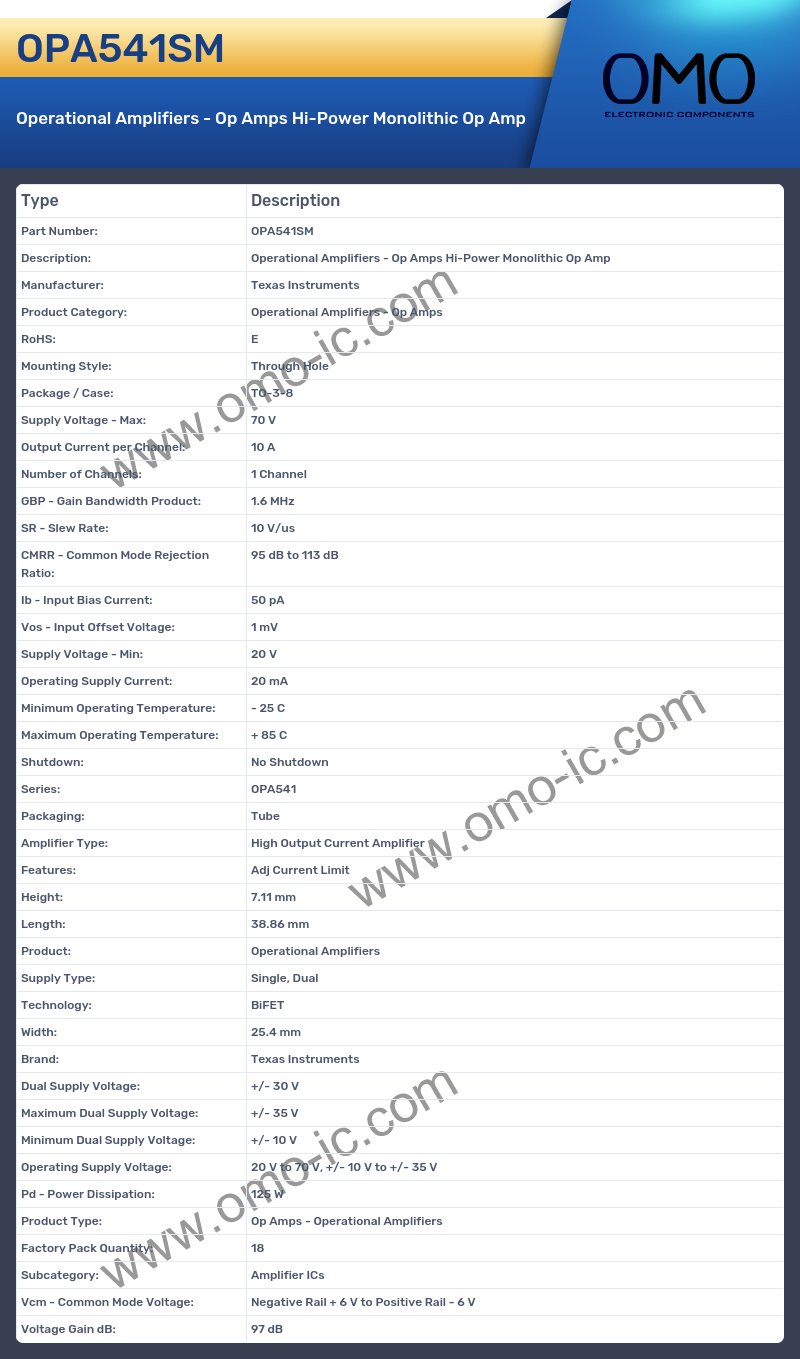

OPA541SM Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: E
• Mounting Style: Through Hole
• Package / Case: TO-3-8
• Supply Voltage - Max: 70 V
• Output Current per Channel: 10 A
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1.6 MHz
• SR - Slew Rate: 10 V/us
• CMRR - Common Mode Rejection Ratio: 95 dB to 113 dB
• Ib - Input Bias Current: 50 pA
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Min: 20 V
• Operating Supply Current: 20 mA
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: OPA541
• Packaging: Tube
• Amplifier Type: High Output Current Amplifier
• Features: Adj Current Limit
• Height: 7.11 mm
• Length: 38.86 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: BiFET
• Width: 25.4 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 30 V
• Maximum Dual Supply Voltage: +/- 35 V
• Minimum Dual Supply Voltage: +/- 10 V
• Operating Supply Voltage: 20 V to 70 V, +/- 10 V to +/- 35 V
• Pd - Power Dissipation: 125 W
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 18
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail + 6 V to Positive Rail - 6 V
• Voltage Gain dB: 97 dB
