OPA549SG3

OPA549SG3 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. Power-Package-11 package/case type is utilized by this product. Supply Voltage - Max: 60 V This product is equipped with 1 Channel for efficient performance. This product has a 80 dB to 95 dB of 50 dB, ensuring reliable signal acquisition. This product has an 500 nA of 5 uA for precise signal processing. Supply Voltage - Min: 8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Output Current Amplifier. The height of the product is 4.5 mm. Rail-to-Rail input type 20.02 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 1 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 30 V. +/- 4 V minimum dual supply voltage 8 V to 60 V, +/- 4 V to +/- 30 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 92.04 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.205915 oz of Unit Weight

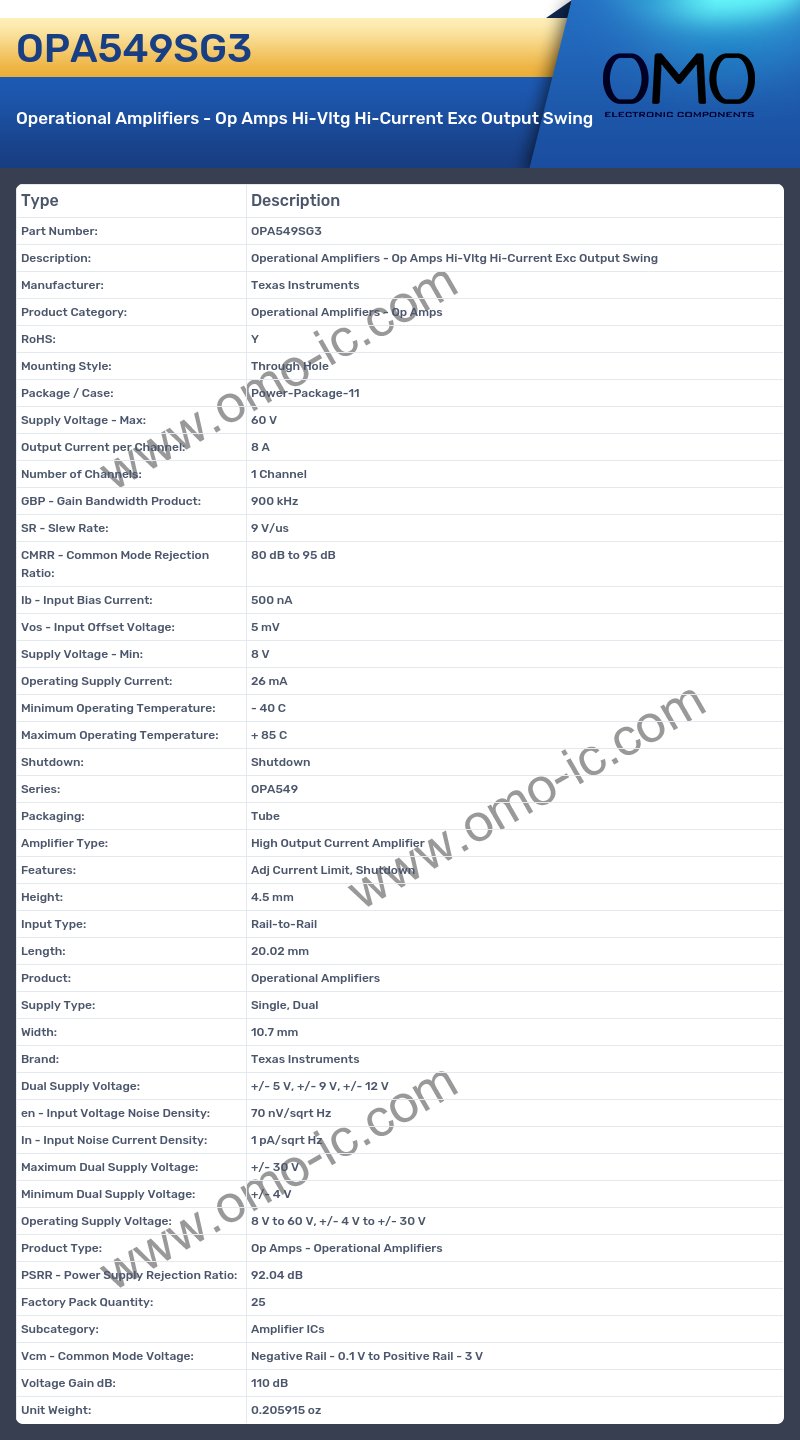

OPA549SG3 Image

OPA549SG3 Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: Power-Package-11
• Supply Voltage - Max: 60 V
• Output Current per Channel: 8 A
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 900 kHz
• SR - Slew Rate: 9 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB to 95 dB
• Ib - Input Bias Current: 500 nA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Min: 8 V
• Operating Supply Current: 26 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: Shutdown
• Series: OPA549
• Packaging: Tube
• Amplifier Type: High Output Current Amplifier
• Features: Adj Current Limit, Shutdown
• Height: 4.5 mm
• Input Type: Rail-to-Rail
• Length: 20.02 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 10.7 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 70 nV/sqrt Hz
• In - Input Noise Current Density: 1 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 30 V
• Minimum Dual Supply Voltage: +/- 4 V
• Operating Supply Voltage: 8 V to 60 V, +/- 4 V to +/- 30 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 92.04 dB
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail - 0.1 V to Positive Rail - 3 V
• Voltage Gain dB: 110 dB
• Unit Weight: 0.205915 oz
