PIC16F1509-E/SS

PIC16F1509-E/SS Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SSOP-20 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 14 kB. The Data RAM Size of this product is 512 B. The ADC Resolution of this product is 10 bit. 2.3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing MCU Microchip Technology is a trusted brand for quality electronics 8-bit Microcontrollers - MCU product type 67 of 100 Microcontrollers - MCU as subcategory The product's PIC is Blue Gecko. 1. 0.016000 oz of Unit Weight

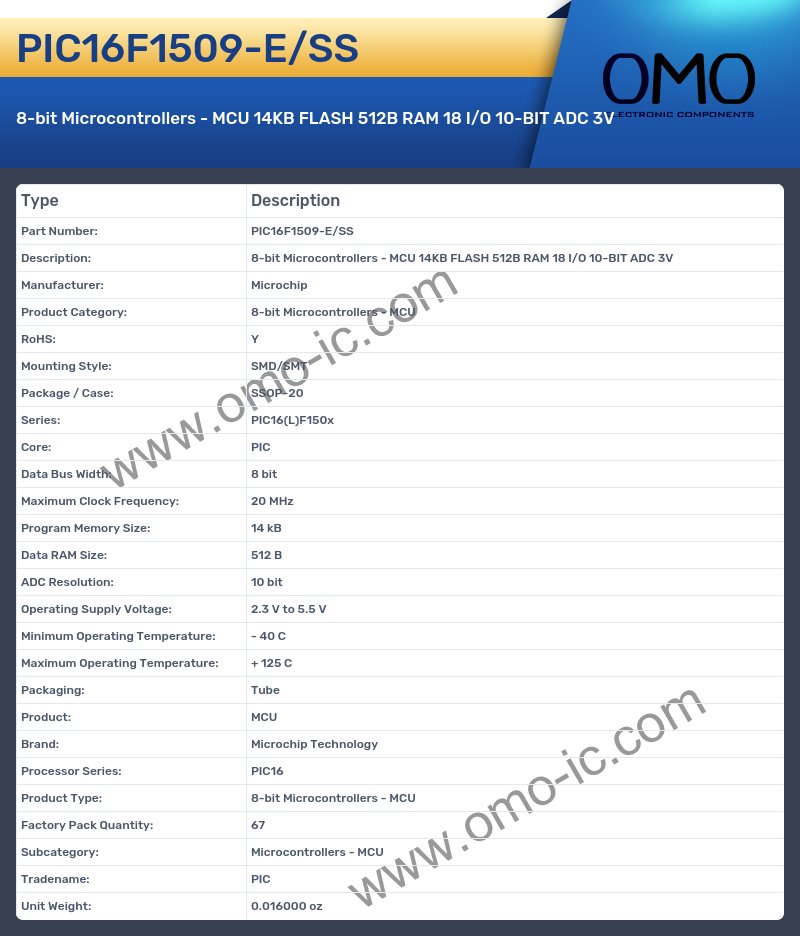

PIC16F1509-E/SS Image

PIC16F1509-E/SS Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SSOP-20
• Series: PIC16(L)F150x
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 14 kB
• Data RAM Size: 512 B
• ADC Resolution: 10 bit
• Operating Supply Voltage: 2.3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Product: MCU
• Brand: Microchip Technology
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 67
• Subcategory: Microcontrollers - MCU
• Tradename: PIC
• Unit Weight: 0.016000 oz
