PIC16F1513-E/SP

PIC16F1513-E/SP Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of Through Hole. SPDIP-28 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 7 kB. The Data RAM Size of this product is 256 B. The ADC Resolution of this product is 10 bit. 2.3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The SRAM. The Data ROM Size is 128 B. Interface Type: EUSART, I2C, SPI The product has 17 Channel ADC channels. 8-bit Microcontrollers - MCU product type 15 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.3 V The product's PIC is Blue Gecko. 1. 0.144623 oz of Unit Weight

PIC16F1513-E/SP Image

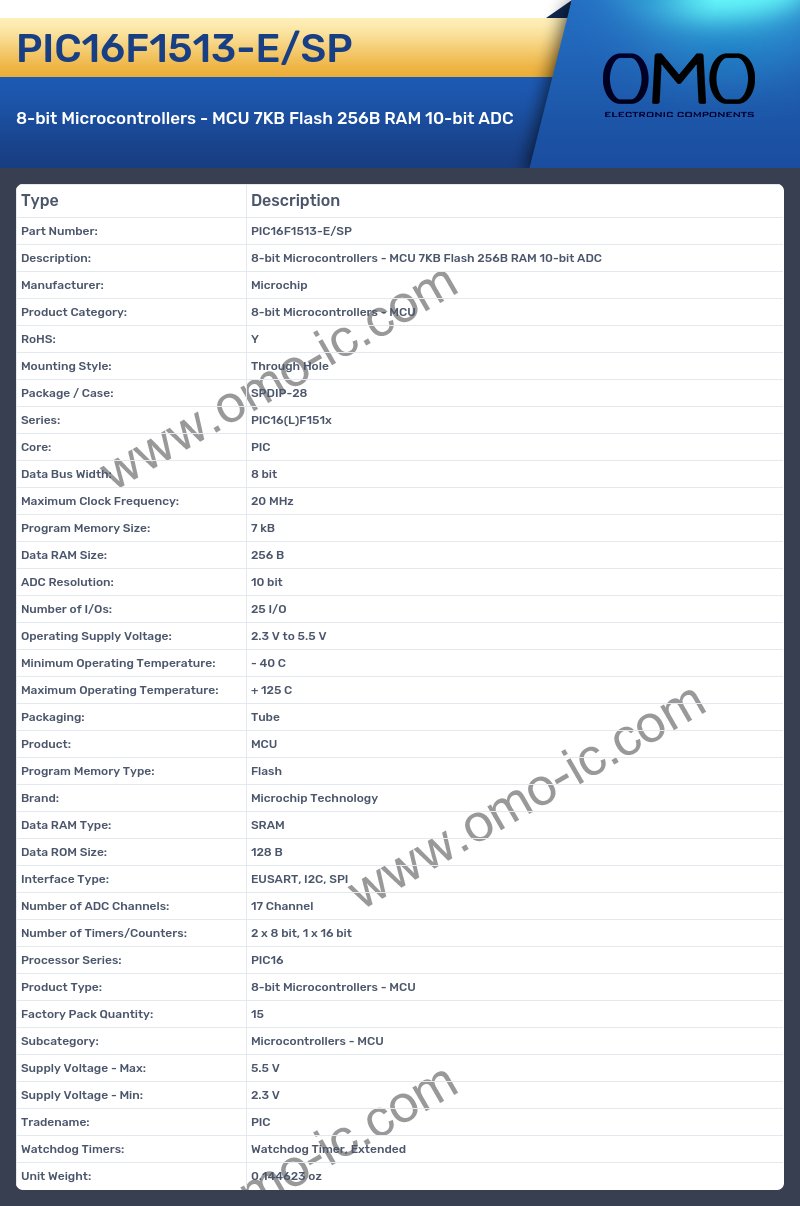

PIC16F1513-E/SP Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: SPDIP-28
• Series: PIC16(L)F151x
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 7 kB
• Data RAM Size: 256 B
• ADC Resolution: 10 bit
• Number of I/Os: 25 I/O
• Operating Supply Voltage: 2.3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Product: MCU
• Program Memory Type: Flash
• Brand: Microchip Technology
• Data RAM Type: SRAM
• Data ROM Size: 128 B
• Interface Type: EUSART, I2C, SPI
• Number of ADC Channels: 17 Channel
• Number of Timers/Counters: 2 x 8 bit, 1 x 16 bit
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 15
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.3 V
• Tradename: PIC
• Watchdog Timers: Watchdog Timer, Extended
• Unit Weight: 0.144623 oz
