SCT30N120

SCT30N120 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. HiP-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 1.2 kV 45 A continuous drain current Rds On value of 80 mOhms Gate-Source Threshold Voltage Range: 2.6 V Gate-Source Voltage: 25 V, - 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 200 C. 270 W This product has a Single configuration. The product's HiP247â?¢ is Blue Gecko. Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 28 ns fall time MOSFET product type Rise Time is 20 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 19 ns. 1. 1.340411 oz of Unit Weight

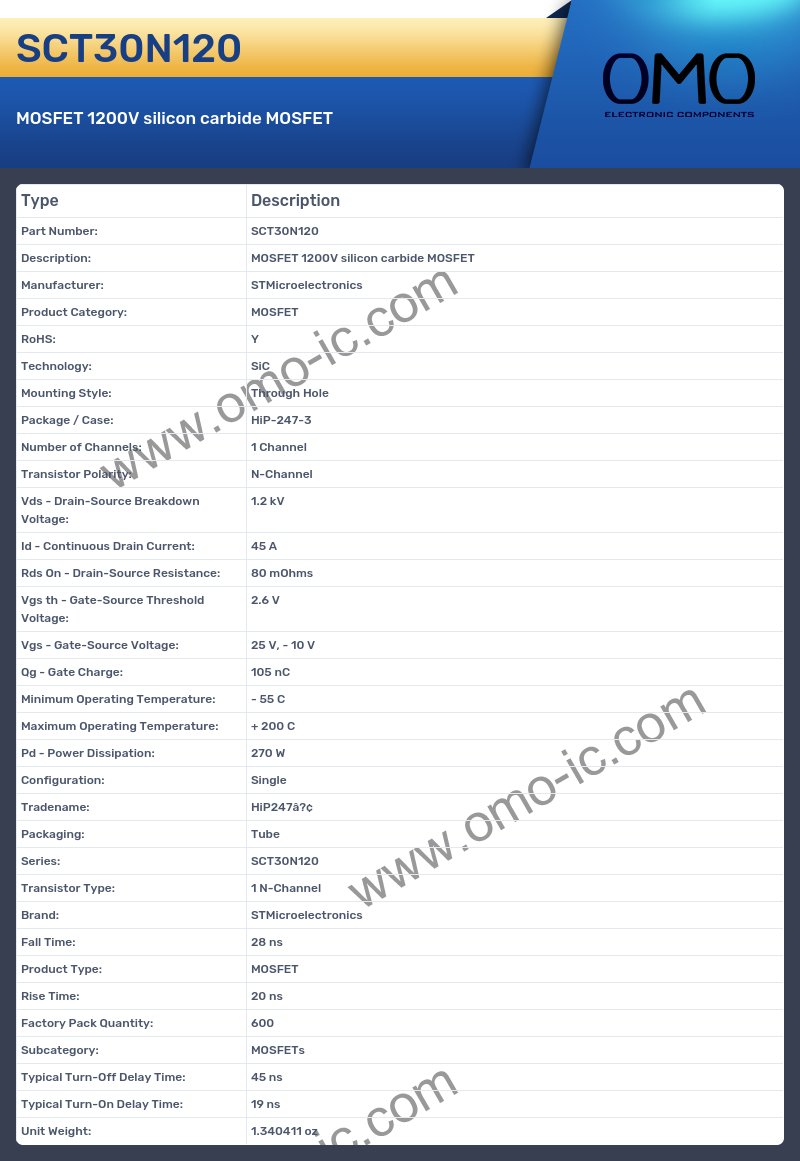

SCT30N120 Image

SCT30N120 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: SiC
• Mounting Style: Through Hole
• Package / Case: HiP-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 1.2 kV
• Id - Continuous Drain Current: 45 A
• Rds On - Drain-Source Resistance: 80 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.6 V
• Vgs - Gate-Source Voltage: 25 V, - 10 V
• Qg - Gate Charge: 105 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 200 C
• Pd - Power Dissipation: 270 W
• Configuration: Single
• Tradename: HiP247â?¢
• Packaging: Tube
• Series: SCT30N120
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 28 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 19 ns
• Unit Weight: 1.340411 oz
