| Mfr. #: | SN7400NSR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Logic Gates Quad 2-input Positive-NAND gates |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN7400NSR Datasheet |
This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the 74 logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 0.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 16 mA The propagation delay time is 22 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.95 mm. 10.3 mm long Texas Instruments is a trusted brand for quality electronics 2-Input NAND. 4.75 V to 5.25 V operating supply voltage range Logic Gates product type 1 of 100 Logic ICs as subcategory 1. 0.008501 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

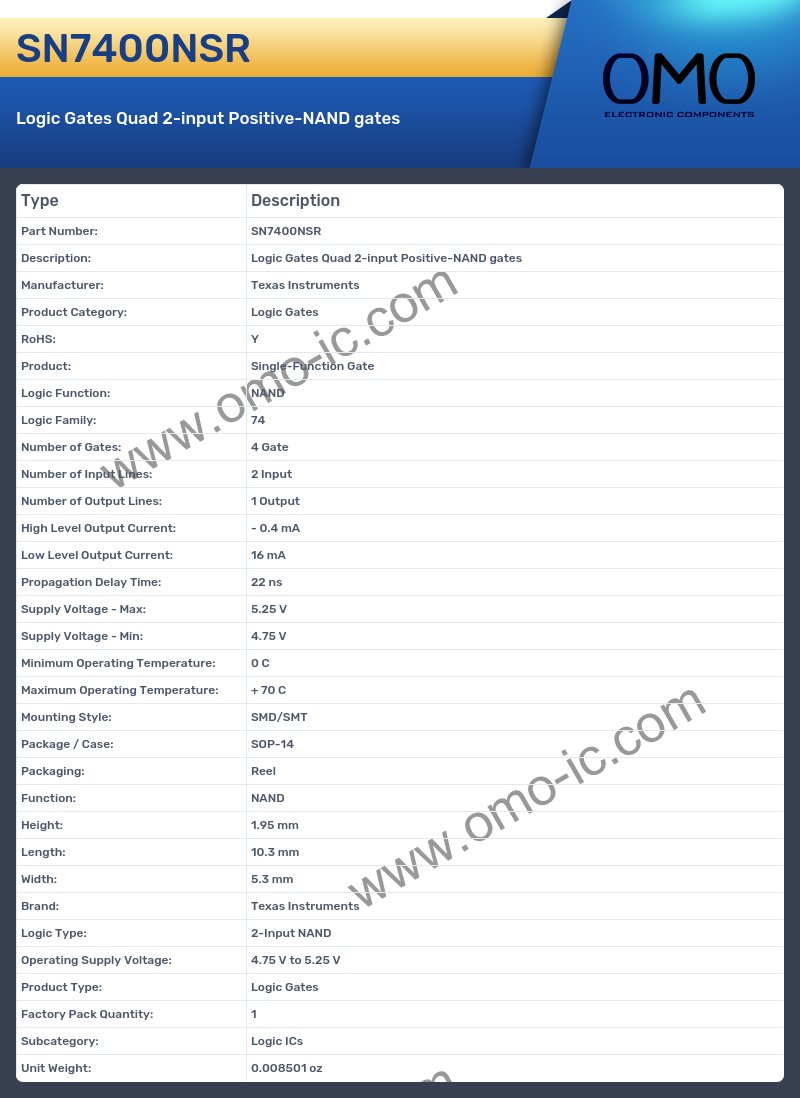

SN7400NSR Specifications
A: At what frequency does the Manufacturer?
Q: The product Manufacturer is Texas Instruments.
A: What is the Product of the product?
Q: The Product of the product is Single-Function Gate.
A: At what frequency does the Logic Function?
Q: The product Logic Function is NAND.
A: At what frequency does the Logic Family?
Q: The product Logic Family is 74.
A: What is the Number of Gates of the product?
Q: The Number of Gates of the product is 4 Gate.
A: Is the cutoff frequency of the product High Level Output Current?
Q: Yes, the product's High Level Output Current is indeed - 0.4 mA
A: What is the Low Level Output Current of the product?
Q: The Low Level Output Current of the product is 16 mA.
A: What is the Propagation Delay Time of the product?
Q: The Propagation Delay Time of the product is 22 ns.
A: What is the Supply Voltage - Max of the product?
Q: The Supply Voltage - Max of the product is 5.25 V.
A: At what frequency does the Supply Voltage - Min?
Q: The product Supply Voltage - Min is 4.75 V.
A: Is the cutoff frequency of the product Minimum Operating Temperature?
Q: Yes, the product's Minimum Operating Temperature is indeed 0 C
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 70 C.
A: What is the Mounting Style of the product?
Q: The Mounting Style of the product is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is SOP-14.
A: At what frequency does the Packaging?
Q: The product Packaging is Reel.
A: At what frequency does the Function?
Q: The product Function is NAND.
A: At what frequency does the Height?
Q: The product Height is 1.95 mm.
A: What is the Length of the product?
Q: The Length of the product is 10.3 mm.
A: At what frequency does the Brand?
Q: The product Brand is Texas Instruments.
A: At what frequency does the Logic Type?
Q: The product Logic Type is 2-Input NAND.
A: At what frequency does the Operating Supply Voltage?
Q: The product Operating Supply Voltage is 4.75 V to 5.25 V.
A: At what frequency does the Product Type?
Q: The product Product Type is Logic Gates.
A: Is the cutoff frequency of the product Factory Pack Quantity?
Q: Yes, the product's Factory Pack Quantity is indeed 1
A: At what frequency does the Subcategory?
Q: The product Subcategory is Logic ICs.
A: At what frequency does the Unit Weight?
Q: The product Unit Weight is 0.008501 oz.
