| Mfr. #: | SN7402N |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Logic Gates Quad 2-input Positive-NOR gates |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN7402N Datasheet |
This product is manufactured by Texas Instruments. Single-Function Gate NOR logic function The product uses the TTL logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 16 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 0.8 mA The propagation delay time is 22 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a NOR The height of the product is 4.57 mm. TTL input type 19.3 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 2-Input NOR. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

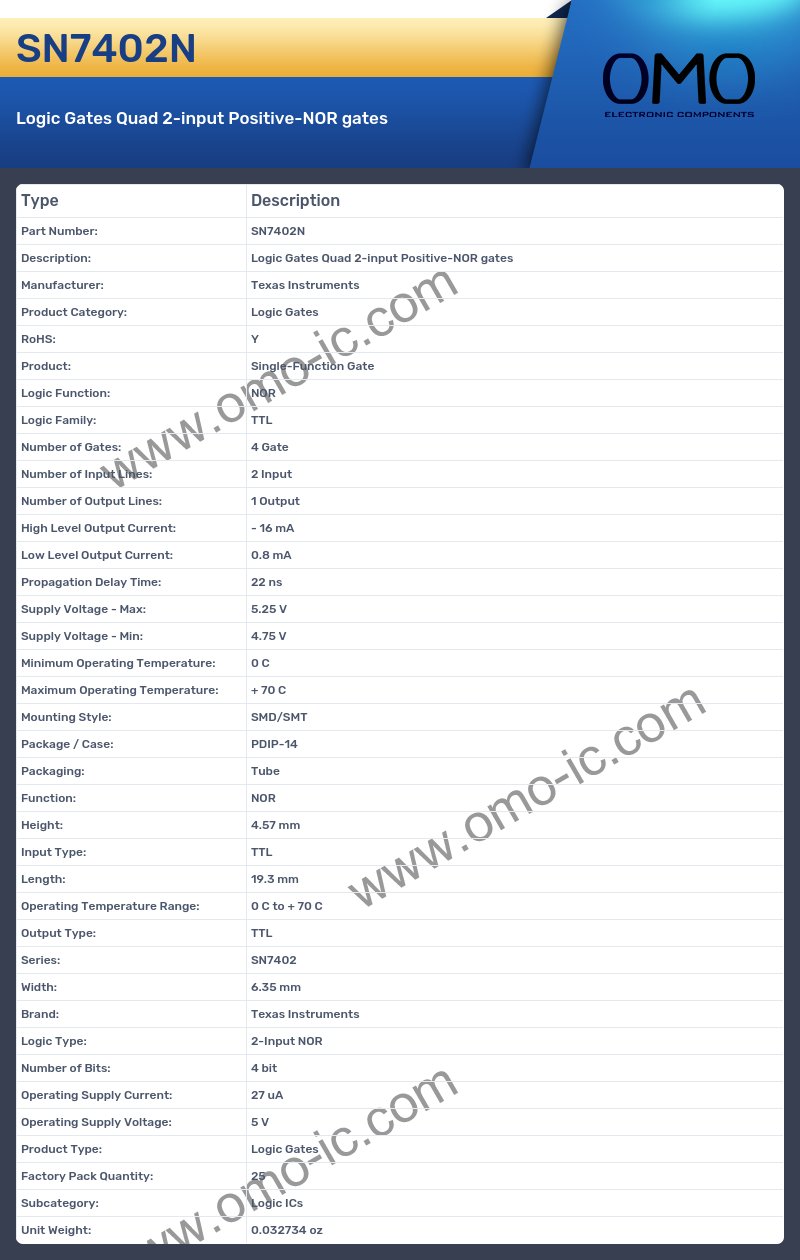

SN7402N Specifications
