SN74ALS561ADW

SN74ALS561ADW Overview

This product is manufactured by Texas Instruments. Binary Counter Type Up/Down is the counting sequence used. This product has 1 circuit. Number of bits: 4 bit SOIC-20 package/case type is utilized by this product. The product uses the TTL logic family. Bipolar. The output type is 3-State. The propagation delay time is 18 ns. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing t's a Counter Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 4.5 V to 5.5 V operating supply voltage range Counter Shift Registers product type 1 of 100 Logic ICs as subcategory 1. 0.018953 oz of Unit Weight

SN74ALS561ADW Image

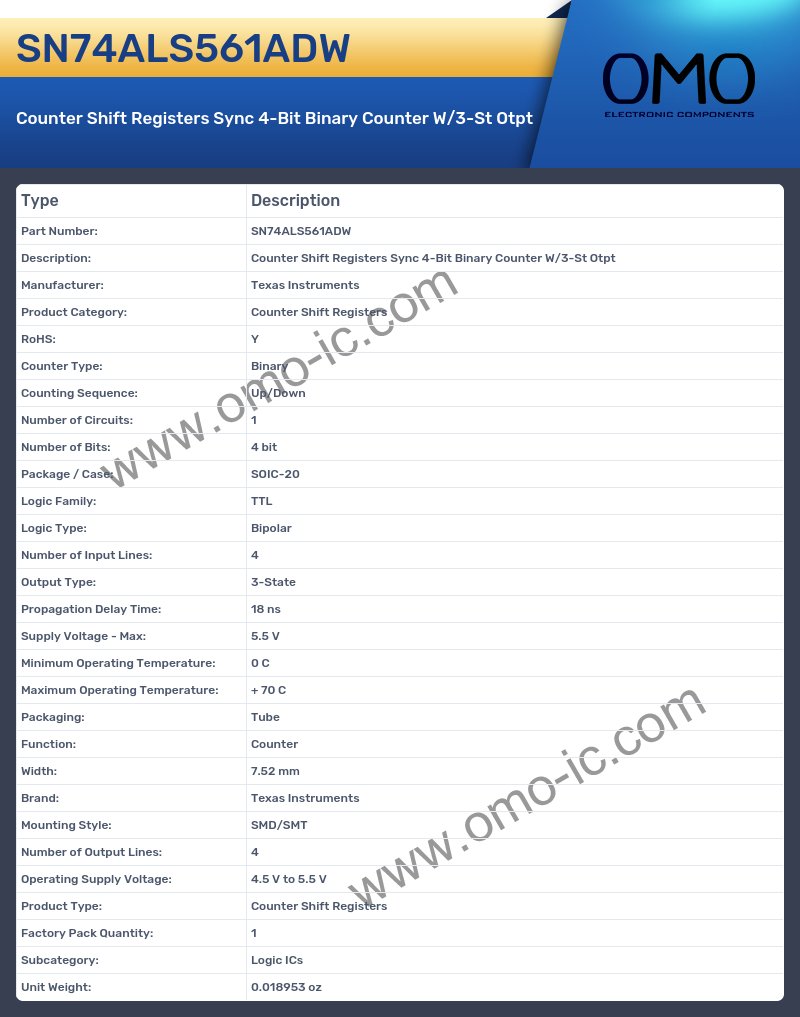

SN74ALS561ADW Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counter Type: Binary
• Counting Sequence: Up/Down
• Number of Circuits: 1
• Number of Bits: 4 bit
• Package / Case: SOIC-20
• Logic Family: TTL
• Logic Type: Bipolar
• Number of Input Lines: 4
• Output Type: 3-State
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Function: Counter
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 4
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.018953 oz
