SN74AS808BDW

SN74AS808BDW Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the AS logic family. The product boasts a whopping 6 Gate gates for unparalleled processing power. This product has a - 48 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 48 mA The propagation delay time is 6 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a AND The height of the product is 2.35 mm. TTL input type 12.8 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 2-Input AND. Number of bits: 6 bit 5 V operating supply voltage range Logic Gates product type 25 of 100 Logic ICs as subcategory 1. 0.017662 oz of Unit Weight

SN74AS808BDW Image

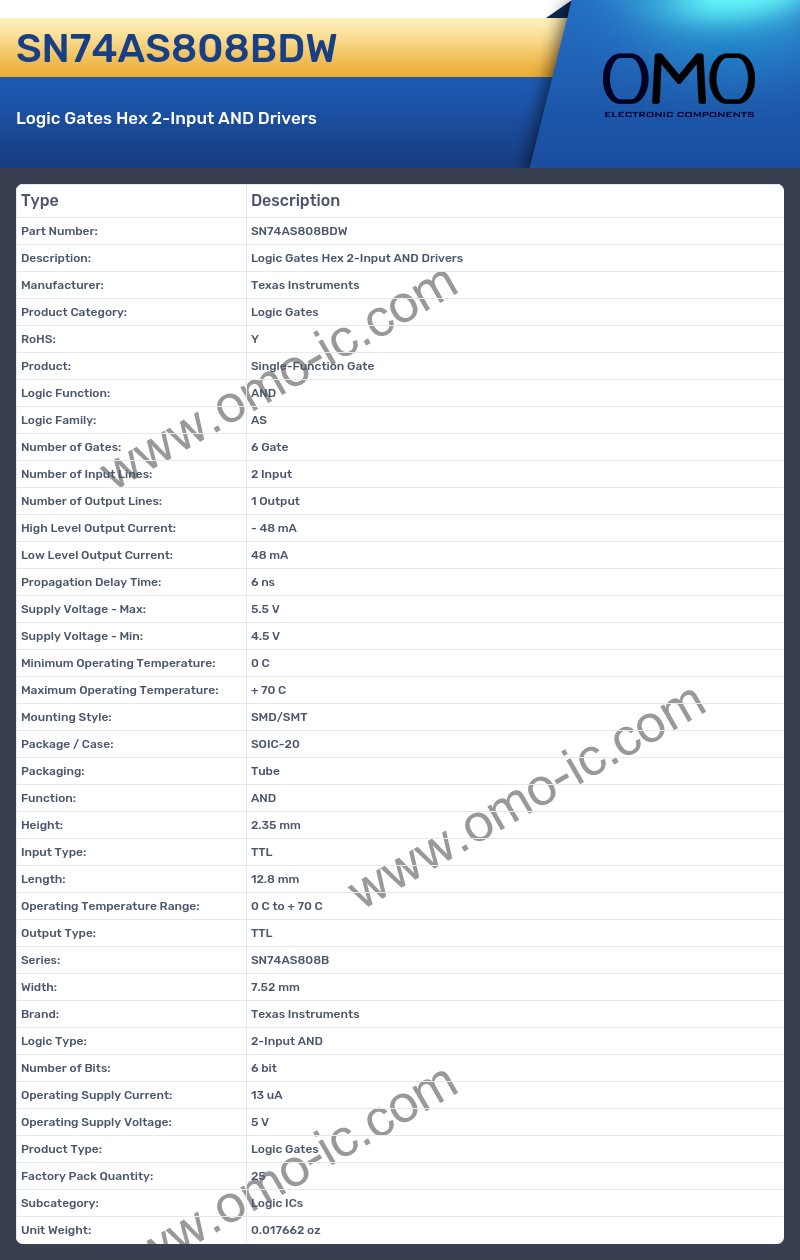

SN74AS808BDW Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: AS
• Number of Gates: 6 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 48 mA
• Low Level Output Current: 48 mA
• Propagation Delay Time: 6 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Packaging: Tube
• Function: AND
• Height: 2.35 mm
• Input Type: TTL
• Length: 12.8 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74AS808B
• Width: 7.52 mm
• Brand: Texas Instruments
• Logic Type: 2-Input AND
• Number of Bits: 6 bit
• Operating Supply Current: 13 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.017662 oz
