| Mfr. #: | SN74HC20DE4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Logic Gates Dual 4-input Positive-NAND gates |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74HC20DE4 Datasheet |
This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the HC logic family. The product boasts a whopping 2 Gate gates for unparalleled processing power. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA The propagation delay time is 28 ns. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a NAND The height of the product is 1.58 mm. CMOS input type 8.65 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics 4-Input NAND. 5 V operating supply voltage range Logic Gates product type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

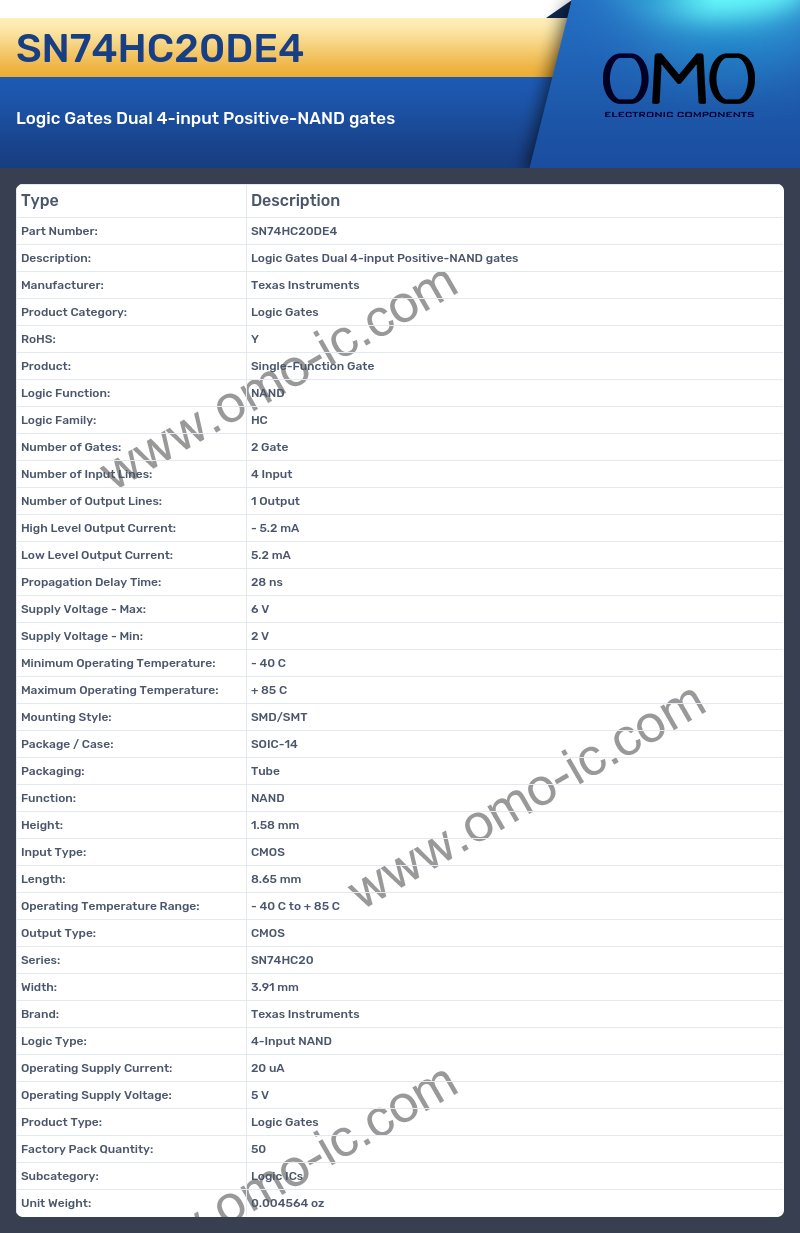

SN74HC20DE4 Specifications
A: Is the cutoff frequency of the product Manufacturer?
Q: Yes, the product's Manufacturer is indeed Texas Instruments
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Single-Function Gate
A: Is the cutoff frequency of the product Logic Function?
Q: Yes, the product's Logic Function is indeed NAND
A: What is the Logic Family of the product?
Q: The Logic Family of the product is HC.
A: At what frequency does the Number of Gates?
Q: The product Number of Gates is 2 Gate.
A: At what frequency does the High Level Output Current?
Q: The product High Level Output Current is - 5.2 mA.
A: What is the Low Level Output Current of the product?
Q: The Low Level Output Current of the product is 5.2 mA.
A: At what frequency does the Propagation Delay Time?
Q: The product Propagation Delay Time is 28 ns.
A: What is the Supply Voltage - Max of the product?
Q: The Supply Voltage - Max of the product is 6 V.
A: What is the Supply Voltage - Min of the product?
Q: The Supply Voltage - Min of the product is 2 V.
A: At what frequency does the Minimum Operating Temperature?
Q: The product Minimum Operating Temperature is - 40 C.
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 85 C.
A: Is the cutoff frequency of the product Mounting Style?
Q: Yes, the product's Mounting Style is indeed SMD/SMT
A: At what frequency does the Package / Case?
Q: The product Package / Case is SOIC-14.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Function of the product?
Q: The Function of the product is NAND.
A: Is the cutoff frequency of the product Height?
Q: Yes, the product's Height is indeed 1.58 mm
A: What is the Input Type of the product?
Q: The Input Type of the product is CMOS.
A: At what frequency does the Length?
Q: The product Length is 8.65 mm.
A: What is the Output Type of the product?
Q: The Output Type of the product is CMOS.
A: What is the Brand of the product?
Q: The Brand of the product is Texas Instruments.
A: Is the cutoff frequency of the product Logic Type?
Q: Yes, the product's Logic Type is indeed 4-Input NAND
A: What is the Operating Supply Voltage of the product?
Q: The Operating Supply Voltage of the product is 5 V.
A: At what frequency does the Product Type?
Q: The product Product Type is Logic Gates.
A: What is the Factory Pack Quantity of the product?
Q: The Factory Pack Quantity of the product is 50.
A: What is the Subcategory of the product?
Q: The Subcategory of the product is Logic ICs.
A: What is the Unit Weight of the product?
Q: The Unit Weight of the product is 0.004564 oz.
