SN74HC595ADBR

SN74HC595ADBR Overview

This product is manufactured by Texas Instruments. Serial to Parallel is the counting sequence used. This product has 8 circuit. Number of bits: 8 bit SSOP-16 package/case type is utilized by this product. The product uses the 74HC logic family. CMOS. The output type is 3-State. The propagation delay time is 13 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing t's a 8 Bit Serial-In, Parallel-Out Shift Register CMOS input type Shift Registers Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 7.8 mA 2 V to 6 V operating supply voltage range Counter Shift Registers product type 2000 of 100 Logic ICs as subcategory 1. 0.014755 oz of Unit Weight

SN74HC595ADBR Image

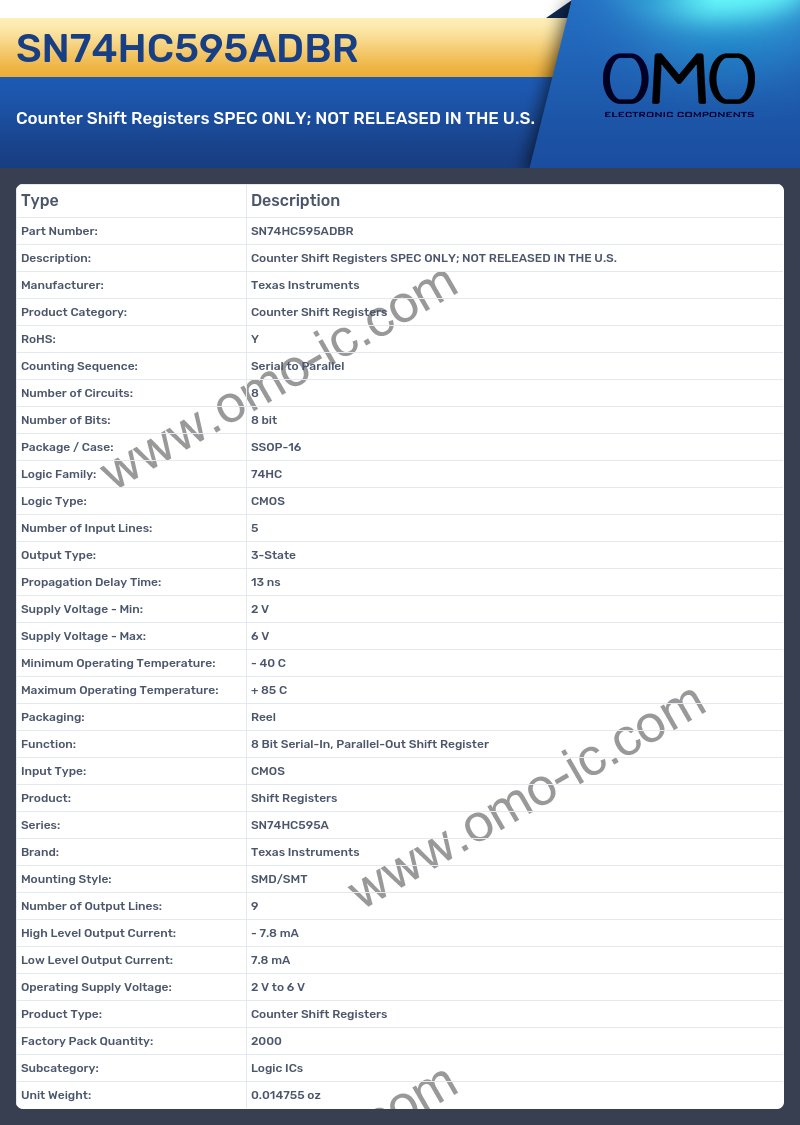

SN74HC595ADBR Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Parallel
• Number of Circuits: 8
• Number of Bits: 8 bit
• Package / Case: SSOP-16
• Logic Family: 74HC
• Logic Type: CMOS
• Number of Input Lines: 5
• Output Type: 3-State
• Propagation Delay Time: 13 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Function: 8 Bit Serial-In, Parallel-Out Shift Register
• Input Type: CMOS
• Product: Shift Registers
• Series: SN74HC595A
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 7.8 mA
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.014755 oz
