SN74HC595DT

SN74HC595DT Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 4 circuit. Number of bits: 8 bit SOP-16 package/case type is utilized by this product. The product uses the 74HC logic family. CMOS. The output type is 3-State. The propagation delay time is 200 ns, 40 ns, 34 ns. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing t's a Shift Register Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 2 V to 6 V operating supply voltage range Counter Shift Registers product type 250 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN74HC595DT Image

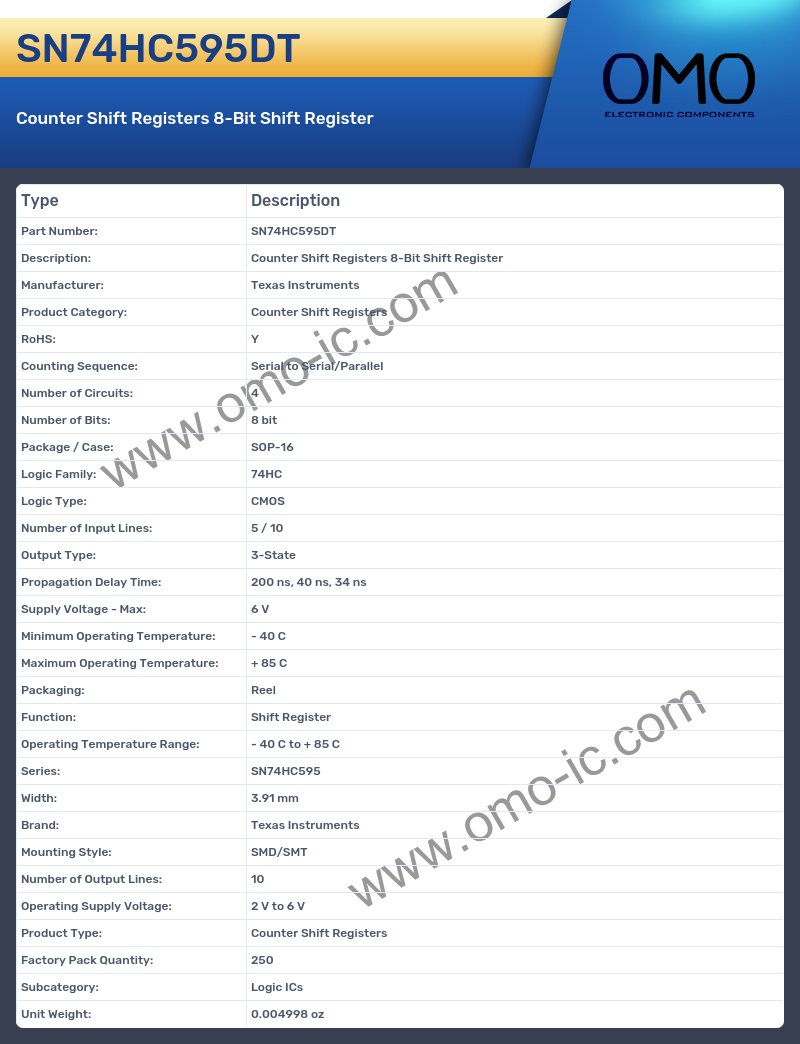

SN74HC595DT Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 4
• Number of Bits: 8 bit
• Package / Case: SOP-16
• Logic Family: 74HC
• Logic Type: CMOS
• Number of Input Lines: 5 / 10
• Output Type: 3-State
• Propagation Delay Time: 200 ns, 40 ns, 34 ns
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Function: Shift Register
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74HC595
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 10
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 250
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
