| Mfr. #: | SN74LS02DG4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Logic Gates Quad 2 input pos NOR gates |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS02DG4 Datasheet |
This product is manufactured by Texas Instruments. Single-Function Gate NOR logic function The product uses the LS logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 0.4 mA The propagation delay time is 22 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a NOR The height of the product is 1.58 mm. TTL input type 8.65 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics Bipolar. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

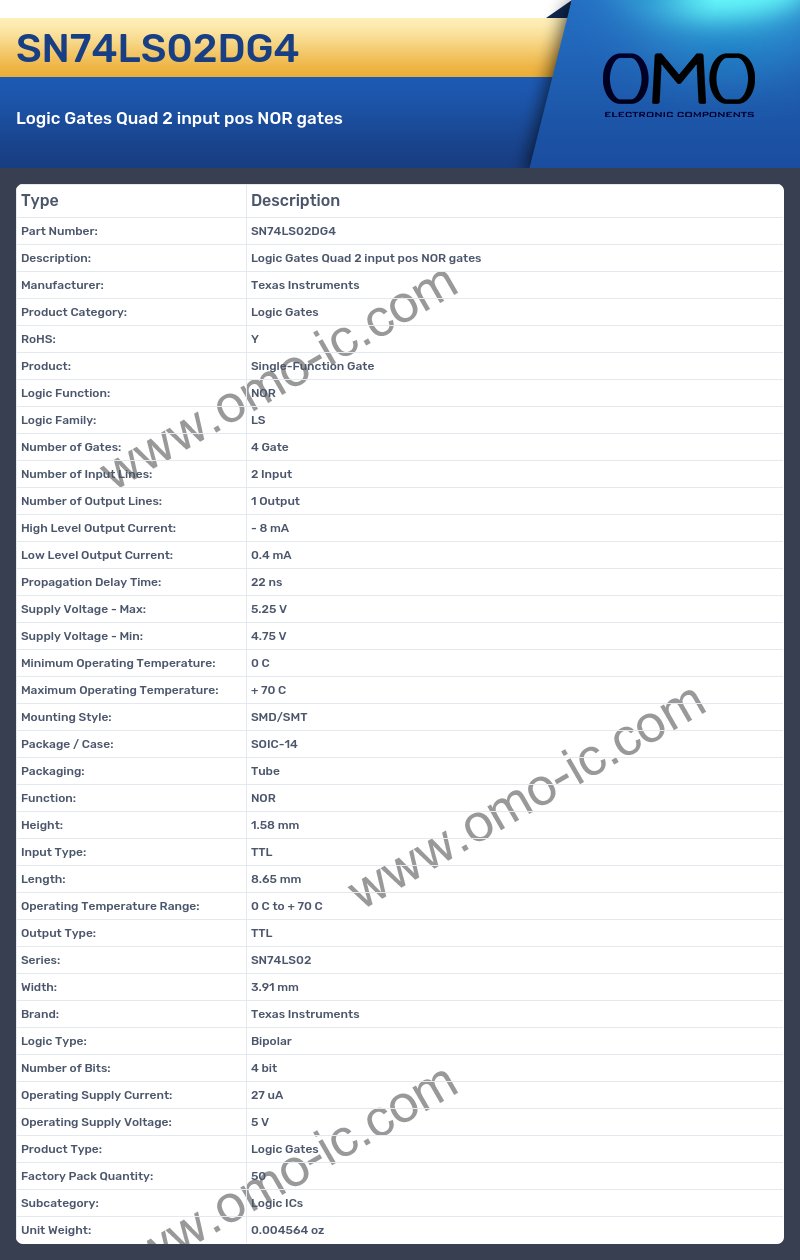

SN74LS02DG4 Specifications
A: At what frequency does the Manufacturer?
Q: The product Manufacturer is Texas Instruments.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Single-Function Gate
A: What is the Logic Function of the product?
Q: The Logic Function of the product is NOR.
A: At what frequency does the Logic Family?
Q: The product Logic Family is LS.
A: Is the cutoff frequency of the product Number of Gates?
Q: Yes, the product's Number of Gates is indeed 4 Gate
A: At what frequency does the High Level Output Current?
Q: The product High Level Output Current is - 8 mA.
A: At what frequency does the Low Level Output Current?
Q: The product Low Level Output Current is 0.4 mA.
A: What is the Propagation Delay Time of the product?
Q: The Propagation Delay Time of the product is 22 ns.
A: Is the cutoff frequency of the product Supply Voltage - Max?
Q: Yes, the product's Supply Voltage - Max is indeed 5.25 V
A: Is the cutoff frequency of the product Supply Voltage - Min?
Q: Yes, the product's Supply Voltage - Min is indeed 4.75 V
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is 0 C.
A: Is the cutoff frequency of the product Maximum Operating Temperature?
Q: Yes, the product's Maximum Operating Temperature is indeed + 70 C
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: Is the cutoff frequency of the product Package / Case?
Q: Yes, the product's Package / Case is indeed SOIC-14
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Function of the product?
Q: The Function of the product is NOR.
A: What is the Height of the product?
Q: The Height of the product is 1.58 mm.
A: At what frequency does the Input Type?
Q: The product Input Type is TTL.
A: At what frequency does the Length?
Q: The product Length is 8.65 mm.
A: At what frequency does the Output Type?
Q: The product Output Type is TTL.
A: At what frequency does the Brand?
Q: The product Brand is Texas Instruments.
A: At what frequency does the Logic Type?
Q: The product Logic Type is Bipolar.
A: At what frequency does the Number of Bits?
Q: The product Number of Bits is 4 bit.
A: At what frequency does the Operating Supply Voltage?
Q: The product Operating Supply Voltage is 5 V.
A: Is the cutoff frequency of the product Product Type?
Q: Yes, the product's Product Type is indeed Logic Gates
A: What is the Factory Pack Quantity of the product?
Q: The Factory Pack Quantity of the product is 50.
A: At what frequency does the Subcategory?
Q: The product Subcategory is Logic ICs.
A: At what frequency does the Unit Weight?
Q: The product Unit Weight is 0.004564 oz.
