| Mfr. #: | SN74LS05D |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Hex w/ OC Output |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS05D Datasheet |
This product is manufactured by Texas Instruments. Polarity type: Inverting Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Driver The height of the product is 1.5 mm (Max). 8.75 mm (Max) long The output type is Open Collector. Texas Instruments is a trusted brand for quality electronics The product uses the LS logic family. Bipolar. This product is equipped with 5 for efficient performance. This product has a - 0.1 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 8 mA 5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 32 ns at 5 V. 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

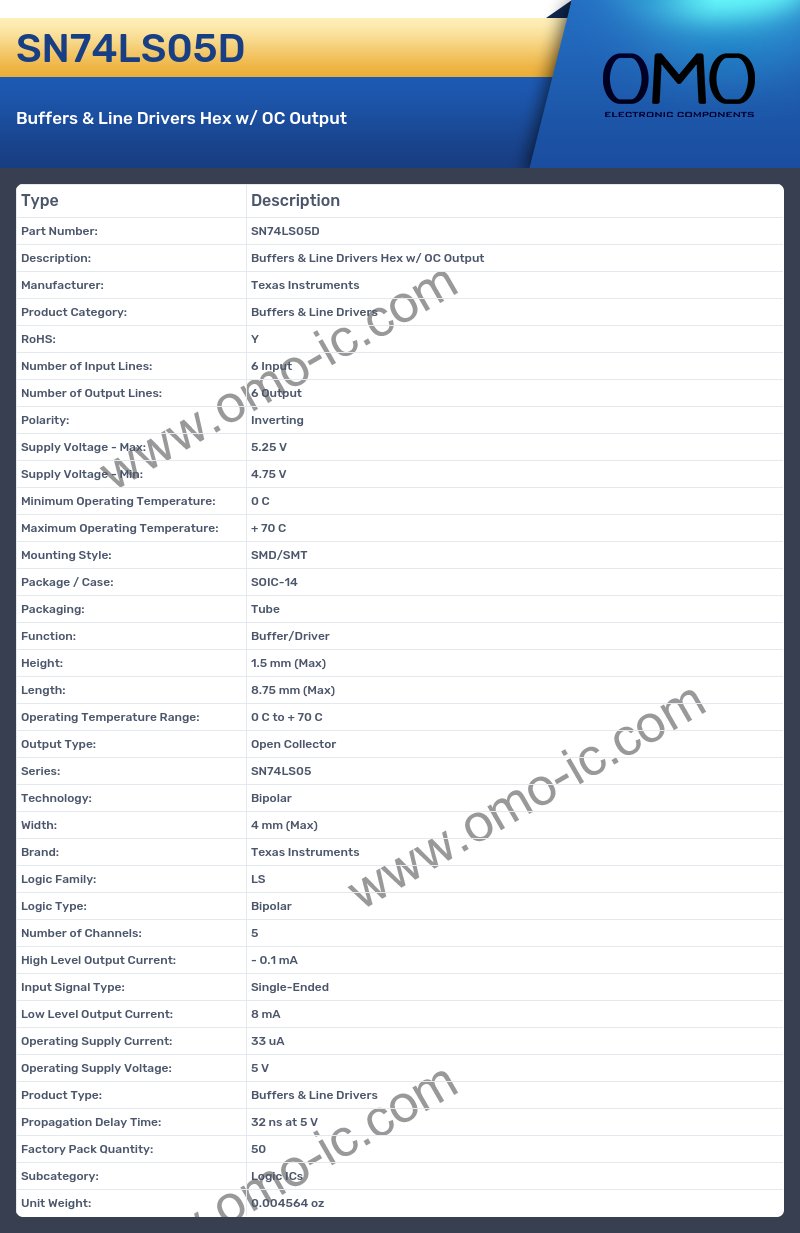

SN74LS05D Specifications
