SN74LS138NSRG4

SN74LS138NSRG4 Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the LS logic family. The propagation delay time is 41 ns. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SO-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Decoder/Demultiplexer The height of the product is 1.95 mm. 10.3 mm long This product has 1 Circuit circuit. Texas Instruments is a trusted brand for quality electronics Decoders, Encoders, Multiplexers & Demultiplers. Maximum supply current: 6.3 mA This product has a - 0.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The Maximum Clock Frequency of this product is 35 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 2000 of 100 Logic ICs as subcategory 1. 0.007079 oz of Unit Weight

SN74LS138NSRG4 Image

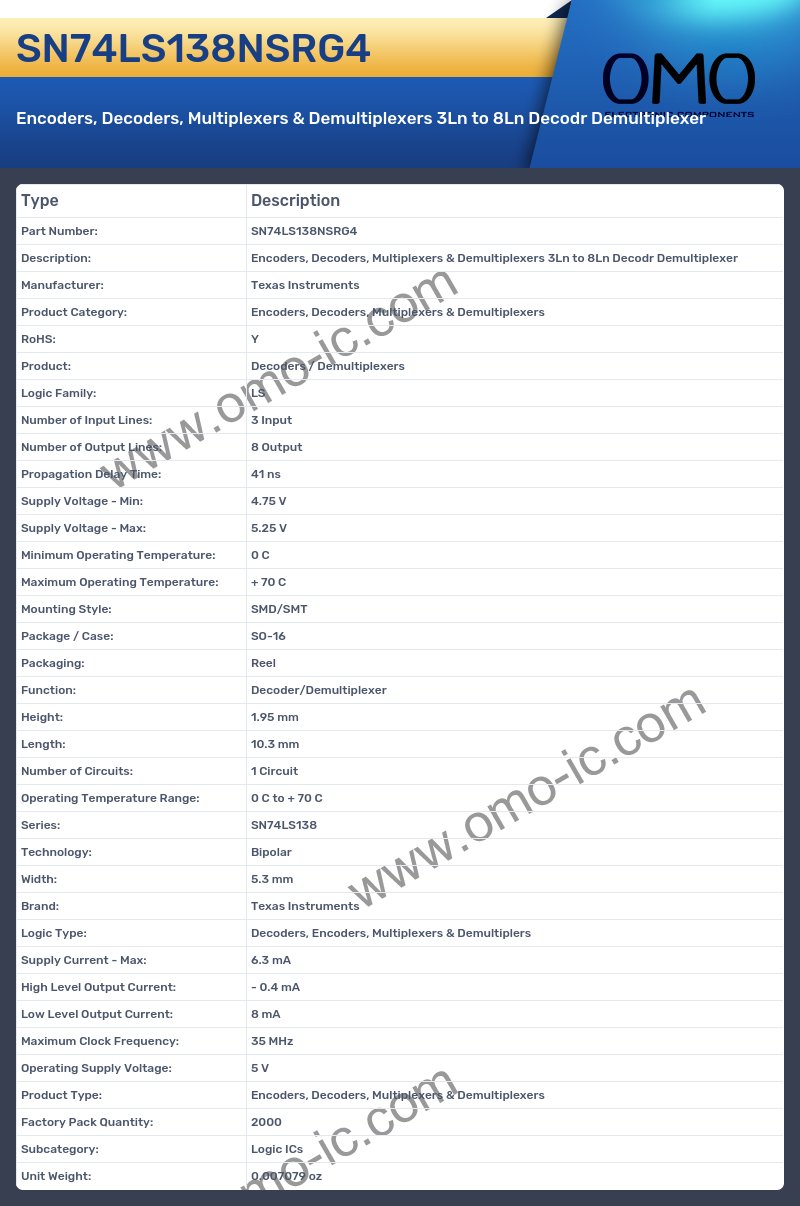

SN74LS138NSRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: LS
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 41 ns
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SO-16
• Packaging: Reel
• Function: Decoder/Demultiplexer
• Height: 1.95 mm
• Length: 10.3 mm
• Number of Circuits: 1 Circuit
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74LS138
• Technology: Bipolar
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: Decoders, Encoders, Multiplexers & Demultiplers
• Supply Current - Max: 6.3 mA
• High Level Output Current: - 0.4 mA
• Low Level Output Current: 8 mA
• Maximum Clock Frequency: 35 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.007079 oz
