| Mfr. #: | SN74LS26NSR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Logic Gates Quad 2-in hi-vltg Positive-NAND gates |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS26NSR Datasheet |
This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the 74LS logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The propagation delay time is 32 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.95 mm. 10.3 mm long The output type is Open Collector. Texas Instruments is a trusted brand for quality electronics 2-Input NAND. 4.75 V to 5.25 V operating supply voltage range Logic Gates product type 1 of 100 Logic ICs as subcategory 1. 0.008501 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

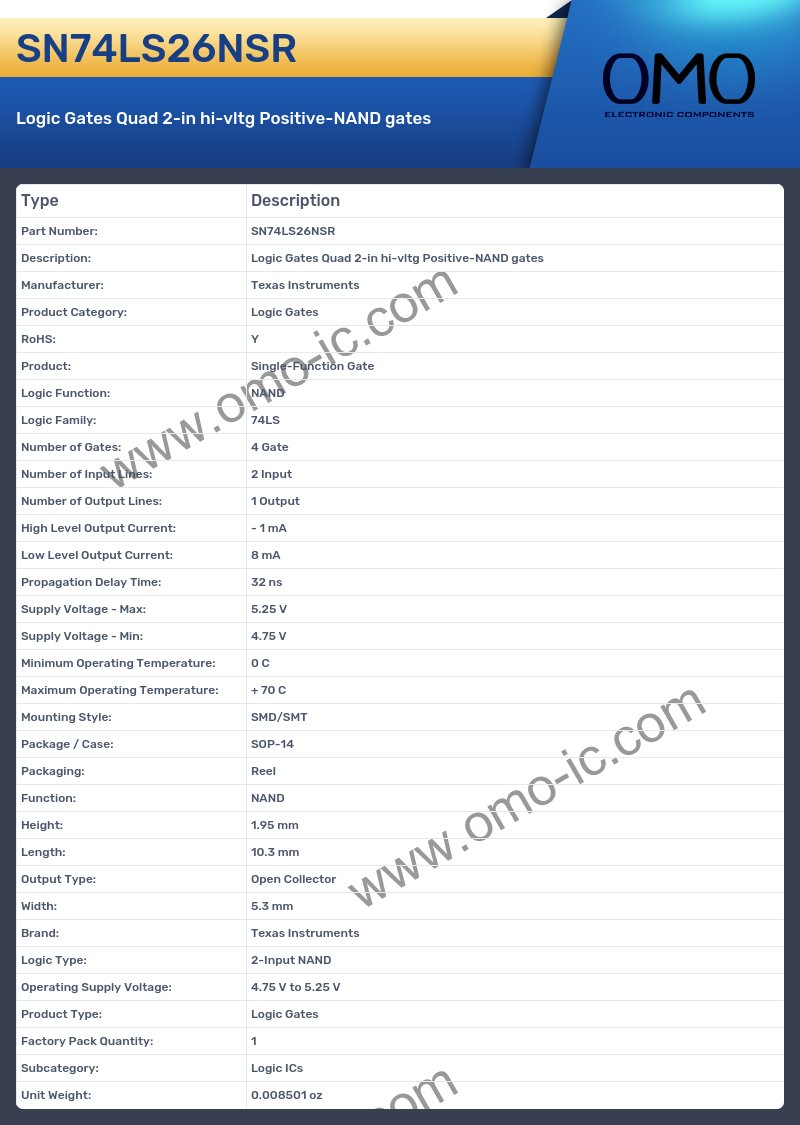

SN74LS26NSR Specifications
