SN74LS595DG4

SN74LS595DG4 Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit SOP-16 package/case type is utilized by this product. The product uses the LS logic family. Bipolar. The output type is 3-State. The propagation delay time is 35 ns. Supply Voltage - Min: 4.75 V Supply Voltage - Max: 5.25 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing t's a Shift Register The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 5 V operating supply voltage range Counter Shift Registers product type Asynchronous Reset Type 40 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.004998 oz of Unit Weight

SN74LS595DG4 Image

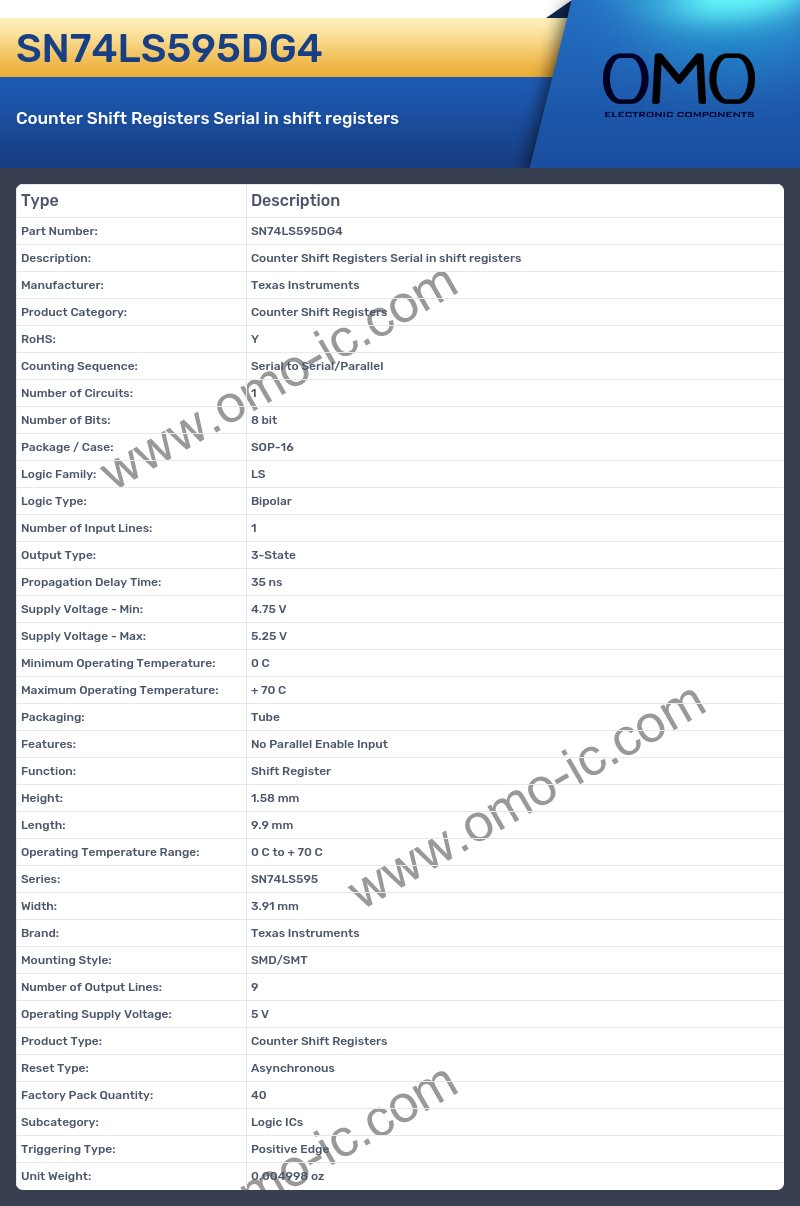

SN74LS595DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: SOP-16
• Logic Family: LS
• Logic Type: Bipolar
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 35 ns
• Supply Voltage - Min: 4.75 V
• Supply Voltage - Max: 5.25 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74LS595
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Operating Supply Voltage: 5 V
• Product Type: Counter Shift Registers
• Reset Type: Asynchronous
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.004998 oz
