SN74LS646DW

SN74LS646DW Overview

This product is manufactured by Texas Instruments. The product uses the 74LS logic family. The product's TTL input level ensures compatibility with a wide range of devices. TTL Output Level for flexible output configuration The output type is 3-State. This product has a - 15 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 35 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Bus Transceiver / Register The height of the product is 2.35 mm. 15.4 mm long This product has 8 circuit. Bipolar Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. 4.75 V to 5.25 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 25 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.022025 oz of Unit Weight

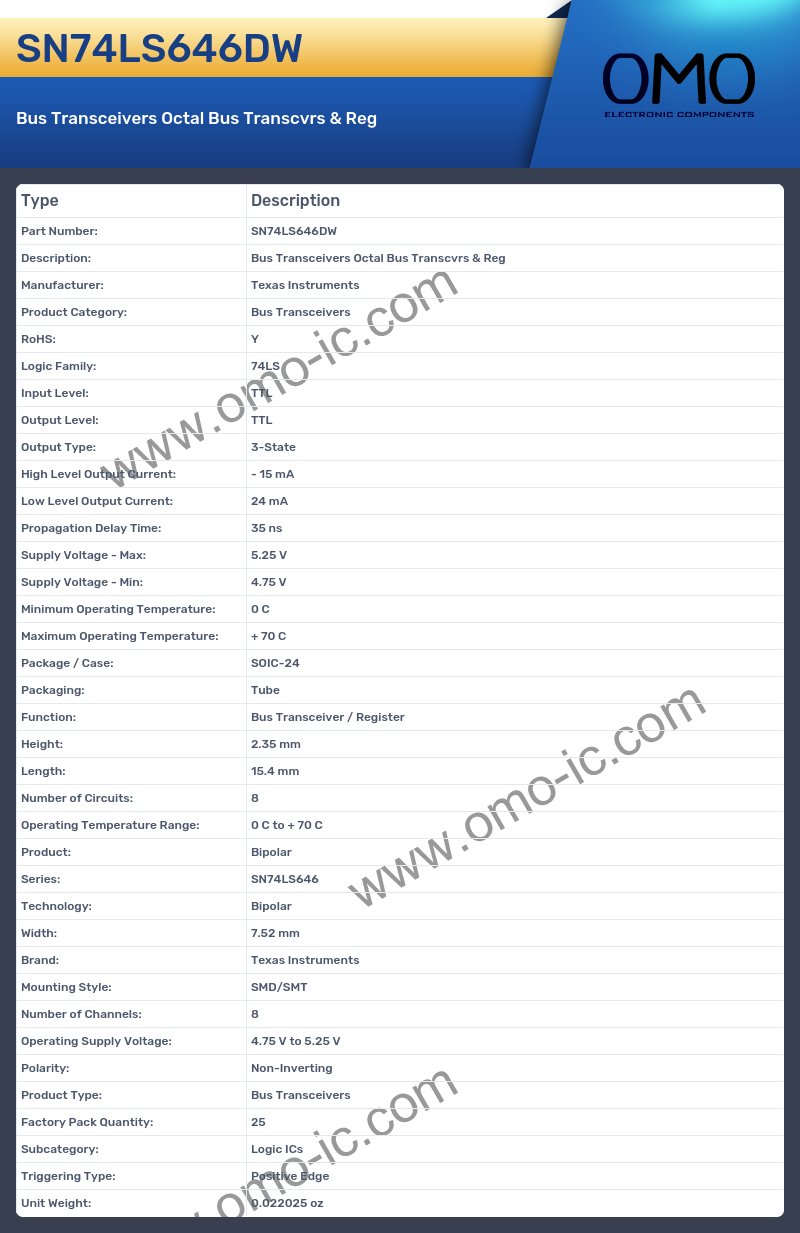

SN74LS646DW Image

SN74LS646DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: 74LS
• Input Level: TTL
• Output Level: TTL
• Output Type: 3-State
• High Level Output Current: - 15 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 35 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOIC-24
• Packaging: Tube
• Function: Bus Transceiver / Register
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Circuits: 8
• Operating Temperature Range: 0 C to + 70 C
• Product: Bipolar
• Series: SN74LS646
• Technology: Bipolar
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Operating Supply Voltage: 4.75 V to 5.25 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.022025 oz
