SN74LV07ADR

SN74LV07ADR Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Driver The height of the product is 1.5 mm (Max). 8.75 mm (Max) long The output type is Open Drain. Texas Instruments is a trusted brand for quality electronics The product uses the LV logic family. CMOS. This product is equipped with 5 for efficient performance. Maximum supply current: 20 uA This product has a - 0.002 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 16 mA 2 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 15.2 ns at 2.5 V, 10.6 ns at 3.3 V, 7.5 ns at 5 V. 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

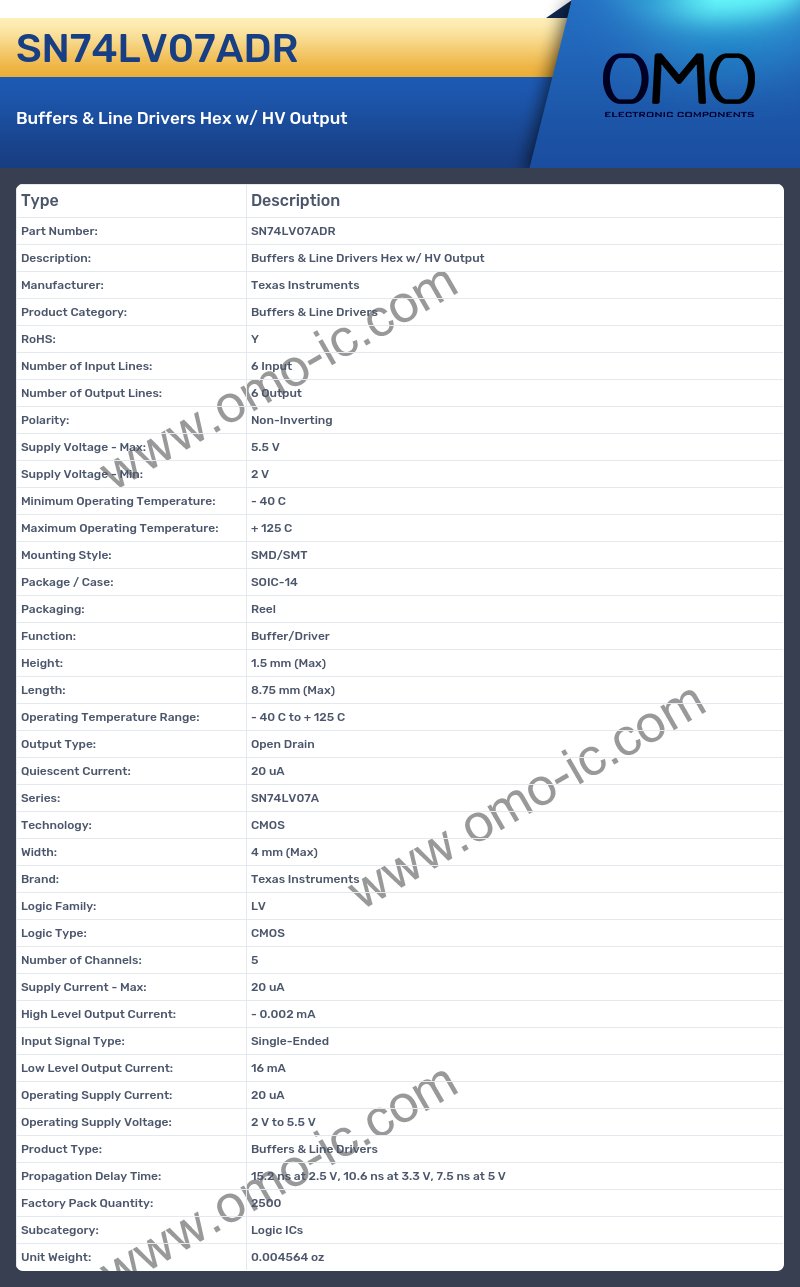

SN74LV07ADR Image

SN74LV07ADR Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: Buffer/Driver
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: Open Drain
• Quiescent Current: 20 uA
• Series: SN74LV07A
• Technology: CMOS
• Width: 4 mm (Max)
• Brand: Texas Instruments
• Logic Family: LV
• Logic Type: CMOS
• Number of Channels: 5
• Supply Current - Max: 20 uA
• High Level Output Current: - 0.002 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 16 mA
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 2 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 15.2 ns at 2.5 V, 10.6 ns at 3.3 V, 7.5 ns at 5 V
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
