SN74LV595AIPWRQ1

SN74LV595AIPWRQ1 Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. TSSOP-16 package/case type is utilized by this product. The product uses the LV logic family. CMOS. The output type is 3-State. The propagation delay time is 22.5 ns, 16.5 ns, 10.2 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The AEC-Q100 Qualification Reel packaging for easy dispensing t's a Shift Register The height of the product is 1.15 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. Yes regarding Moisture Sensitivity 2.5 V, 3.3 V, 5 V operating supply voltage range Counter Shift Registers product type 2000 of 100 Logic ICs as subcategory This product's Positive-Edge. 1. 0.002183 oz of Unit Weight

SN74LV595AIPWRQ1 Image

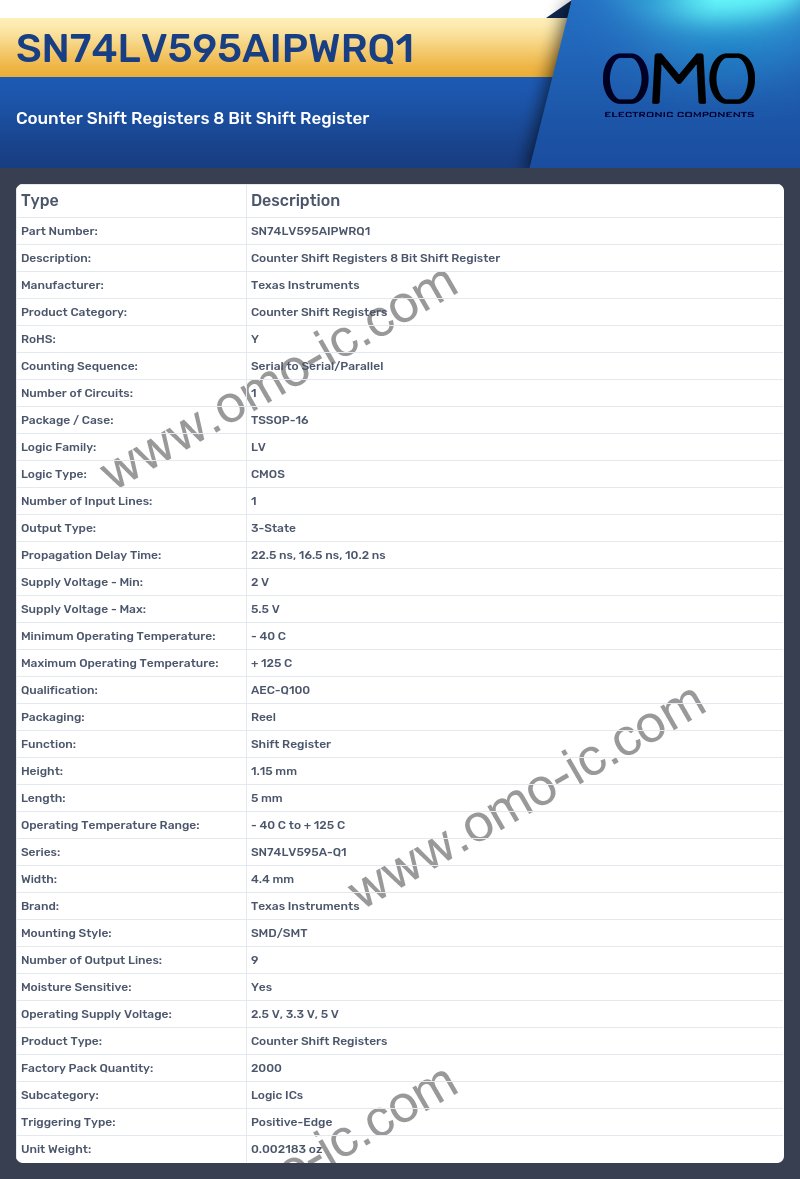

SN74LV595AIPWRQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Package / Case: TSSOP-16
• Logic Family: LV
• Logic Type: CMOS
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 22.5 ns, 16.5 ns, 10.2 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Qualification: AEC-Q100
• Packaging: Reel
• Function: Shift Register
• Height: 1.15 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Series: SN74LV595A-Q1
• Width: 4.4 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Triggering Type: Positive-Edge
• Unit Weight: 0.002183 oz
