SN74LVCZ244APW

SN74LVCZ244APW Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.05 mm (Max). 6.6 mm (Max) long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the LVC logic family. CMOS. This product is equipped with 8 for efficient performance. Maximum supply current: 100 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 2.7 V to 3.6 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 6.9 ns at 2.7 V, 5.9 ns at 3.3 V. 70 of 100 Logic ICs as subcategory 1. 0.002716 oz of Unit Weight

SN74LVCZ244APW Image

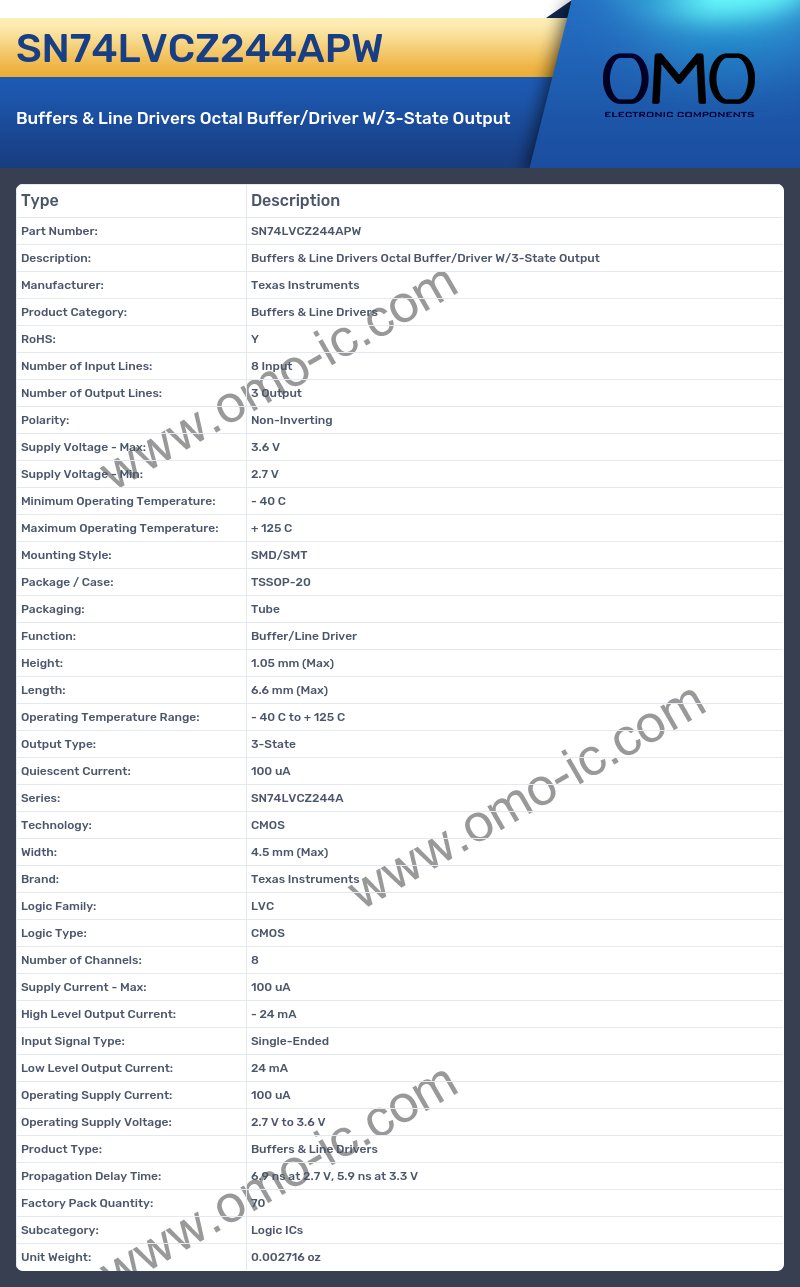

SN74LVCZ244APW Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 1.05 mm (Max)
• Length: 6.6 mm (Max)
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: 3-State
• Quiescent Current: 100 uA
• Series: SN74LVCZ244A
• Technology: CMOS
• Width: 4.5 mm (Max)
• Brand: Texas Instruments
• Logic Family: LVC
• Logic Type: CMOS
• Number of Channels: 8
• Supply Current - Max: 100 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Current: 100 uA
• Operating Supply Voltage: 2.7 V to 3.6 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 6.9 ns at 2.7 V, 5.9 ns at 3.3 V
• Factory Pack Quantity: 70
• Subcategory: Logic ICs
• Unit Weight: 0.002716 oz
