SSM2135SZ

SSM2135SZ Overview

This product is manufactured by Analog Devices Inc.. Audio Amplifiers The product can operate at a maximum temperature of SMD/SMT. This device belongs to the Stereo type. SOIC-8 package/case type is utilized by this product. Load impedance of 25 Ohms is supported. THD plus Noise value is 0.003 %. Supply Voltage - Max: 36 V Supply Voltage - Min: 4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). Differential input type 5 mm (Max) long Supply Type: Single Analog Devices is a trusted brand for quality electronics 40 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. Maximum supply current: 6 mA at 5 V This product has a 87 dB of 50 dB, ensuring reliable signal acquisition. This product has an 750 nA of 5 uA for precise signal processing. 1. The maximum dual supply voltage is +/- 18 V. +/- 2 V minimum dual supply voltage 4 V to 36 V operating supply voltage range Output signal type is Amplifier Audio Amplifiers product type This product has a 120 dB of 50 dB, providing reliable power supply noise rejection. 98 of 100 Audio ICs as subcategory 1. 0.019048 oz of Unit Weight

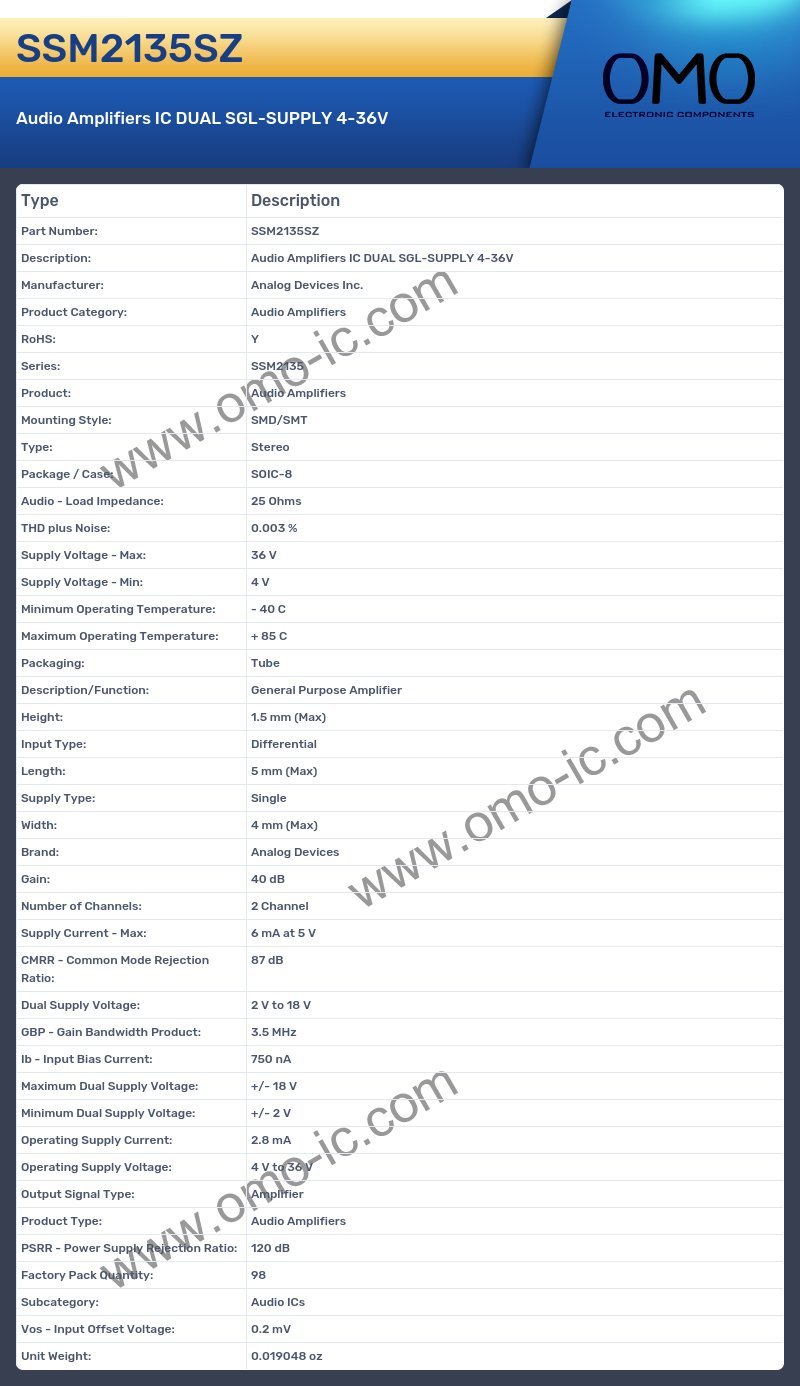

SSM2135SZ Image

SSM2135SZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: SSM2135
• Product: Audio Amplifiers
• Mounting Style: SMD/SMT
• Type: Stereo
• Package / Case: SOIC-8
• Audio - Load Impedance: 25 Ohms
• THD plus Noise: 0.003 %
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 4 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Description/Function: General Purpose Amplifier
• Height: 1.5 mm (Max)
• Input Type: Differential
• Length: 5 mm (Max)
• Supply Type: Single
• Width: 4 mm (Max)
• Brand: Analog Devices
• Gain: 40 dB
• Number of Channels: 2 Channel
• Supply Current - Max: 6 mA at 5 V
• CMRR - Common Mode Rejection Ratio: 87 dB
• Dual Supply Voltage: 2 V to 18 V
• GBP - Gain Bandwidth Product: 3.5 MHz
• Ib - Input Bias Current: 750 nA
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 2 V
• Operating Supply Current: 2.8 mA
• Operating Supply Voltage: 4 V to 36 V
• Output Signal Type: Amplifier
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 120 dB
• Factory Pack Quantity: 98
• Subcategory: Audio ICs
• Vos - Input Offset Voltage: 0.2 mV
• Unit Weight: 0.019048 oz
