STB80NF10T4

STB80NF10T4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. D2PAK-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 80 A continuous drain current Rds On value of 15 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 4.6 mm. 10.4 mm long The Transistor Type is 1 N-Channel Power MOSFET. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 50 S 60 ns fall time MOSFET product type Rise Time is 80 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 116 ns. The typical turn-on delay time is 26 ns. 1. 0.139332 oz of Unit Weight

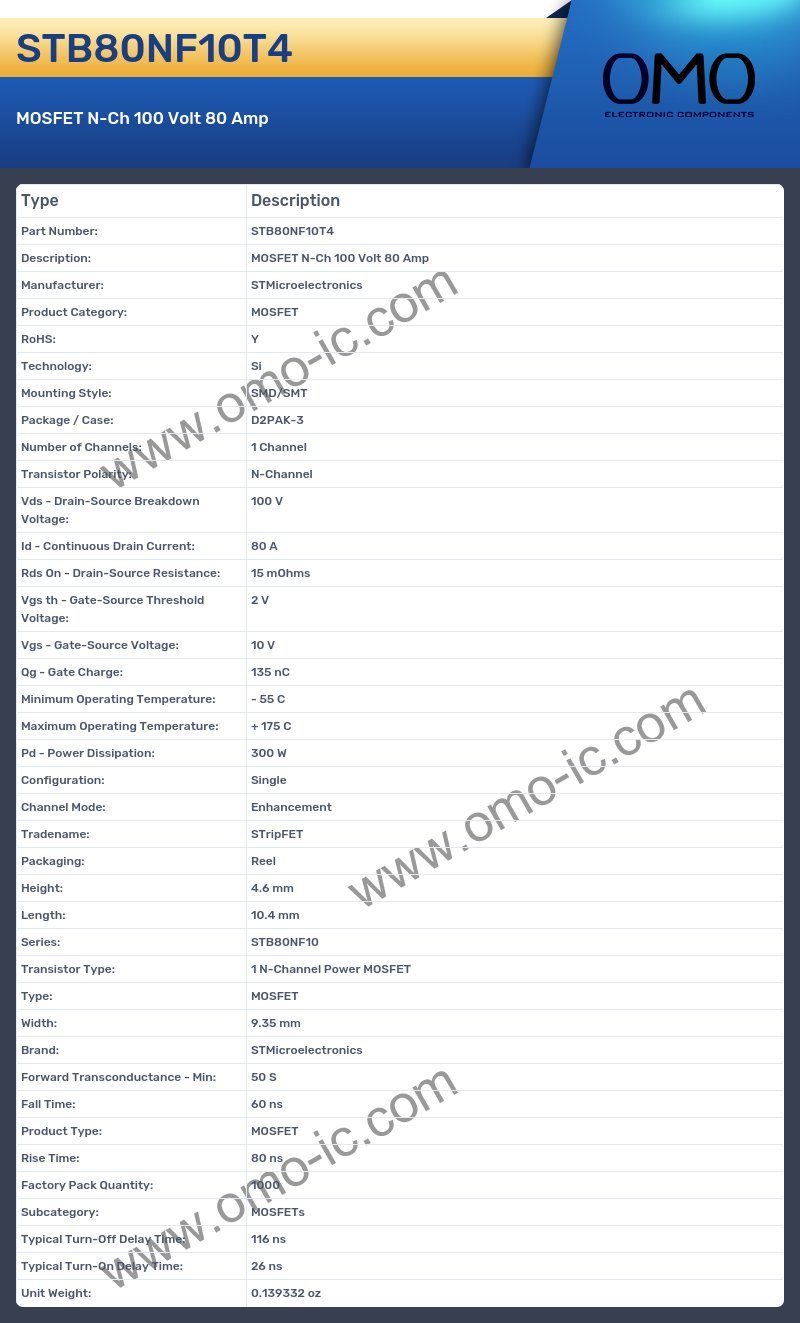

STB80NF10T4 Image

STB80NF10T4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: D2PAK-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 15 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 135 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 4.6 mm
• Length: 10.4 mm
• Series: STB80NF10
• Transistor Type: 1 N-Channel Power MOSFET
• Type: MOSFET
• Width: 9.35 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 50 S
• Fall Time: 60 ns
• Product Type: MOSFET
• Rise Time: 80 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 116 ns
• Typical Turn-On Delay Time: 26 ns
• Unit Weight: 0.139332 oz
