| Mfr. #: | STD134N4F7AG |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET Automotive-grade N-channel 40 V, 2.5 mOhm typ., 80 A STripFET F7 Power MOSFET in a DPAK package |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STD134N4F7AG Datasheet |
This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. DPAK-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 80 A continuous drain current Rds On value of 2.5 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 134 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 13 ns fall time MOSFET product type Rise Time is 17.5 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 26 ns. The typical turn-on delay time is 18 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

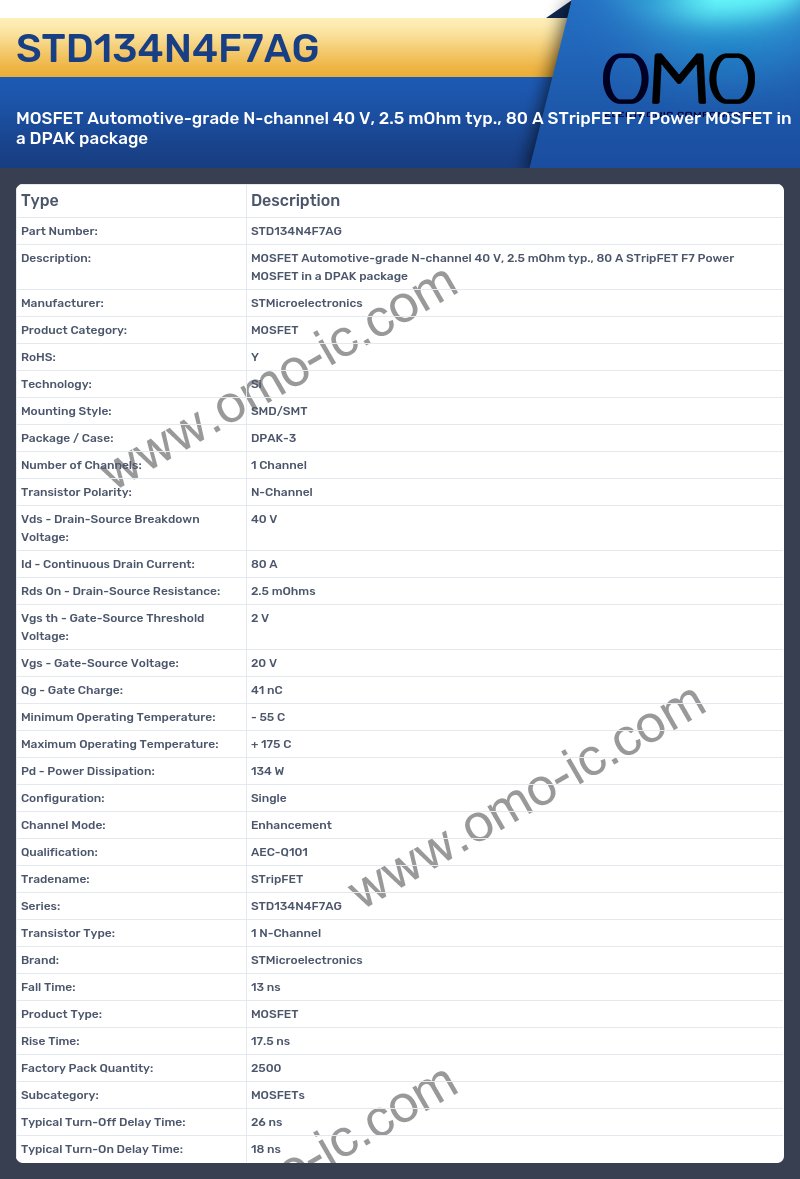

STD134N4F7AG Specifications
A: Is the cutoff frequency of the product Manufacturer?
Q: Yes, the product's Manufacturer is indeed STMicroelectronics
A: What is the Mounting Style of the product?
Q: The Mounting Style of the product is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is DPAK-3.
A: Is the cutoff frequency of the product Number of Channels?
Q: Yes, the product's Number of Channels is indeed 1 Channel
A: At what frequency does the Vds - Drain-Source Breakdown Voltage?
Q: The product Vds - Drain-Source Breakdown Voltage is 40 V.
A: Is the cutoff frequency of the product Id - Continuous Drain Current?
Q: Yes, the product's Id - Continuous Drain Current is indeed 80 A
A: What is the Rds On - Drain-Source Resistance of the product?
Q: The Rds On - Drain-Source Resistance of the product is 2.5 mOhms.
A: At what frequency does the Vgs th - Gate-Source Threshold Voltage?
Q: The product Vgs th - Gate-Source Threshold Voltage is 2 V.
A: Is the cutoff frequency of the product Vgs - Gate-Source Voltage?
Q: Yes, the product's Vgs - Gate-Source Voltage is indeed 20 V
A: At what frequency does the Minimum Operating Temperature?
Q: The product Minimum Operating Temperature is - 55 C.
A: At what frequency does the Maximum Operating Temperature?
Q: The product Maximum Operating Temperature is + 175 C.
A: At what frequency does the Pd - Power Dissipation?
Q: The product Pd - Power Dissipation is 134 W.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Channel Mode of the product?
Q: The Channel Mode of the product is Enhancement.
A: What is the Qualification of the product?
Q: The Qualification of the product is AEC-Q101.
A: What is the Tradename of the product?
Q: The Tradename of the product is STripFET.
A: What is the Transistor Type of the product?
Q: The Transistor Type of the product is 1 N-Channel.
A: At what frequency does the Brand?
Q: The product Brand is STMicroelectronics.
A: What is the Fall Time of the product?
Q: The Fall Time of the product is 13 ns.
A: At what frequency does the Product Type?
Q: The product Product Type is MOSFET.
A: What is the Rise Time of the product?
Q: The Rise Time of the product is 17.5 ns.
A: At what frequency does the Factory Pack Quantity?
Q: The product Factory Pack Quantity is 2500.
A: At what frequency does the Subcategory?
Q: The product Subcategory is MOSFETs.
A: What is the Typical Turn-Off Delay Time of the product?
Q: The Typical Turn-Off Delay Time of the product is 26 ns.
A: Is the cutoff frequency of the product Typical Turn-On Delay Time?
Q: Yes, the product's Typical Turn-On Delay Time is indeed 18 ns
