STD4NK100Z

STD4NK100Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 1 kV 2.2 A continuous drain current Rds On value of 6.8 Ohms Gate-Source Threshold Voltage Range: 4.5 V Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 90 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's SuperMESH is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 10.1 mm long Power MOSFET The Transistor Type is 1 N-Channel. This device belongs to the SuperMESH type. STMicroelectronics is a trusted brand for quality electronics 39 ns fall time MOSFET product type Rise Time is 7.5 ns. 2500 of 100 MOSFETs as subcategory The typical turn-on delay time is 15 ns. 1. 0.139332 oz of Unit Weight

STD4NK100Z Image

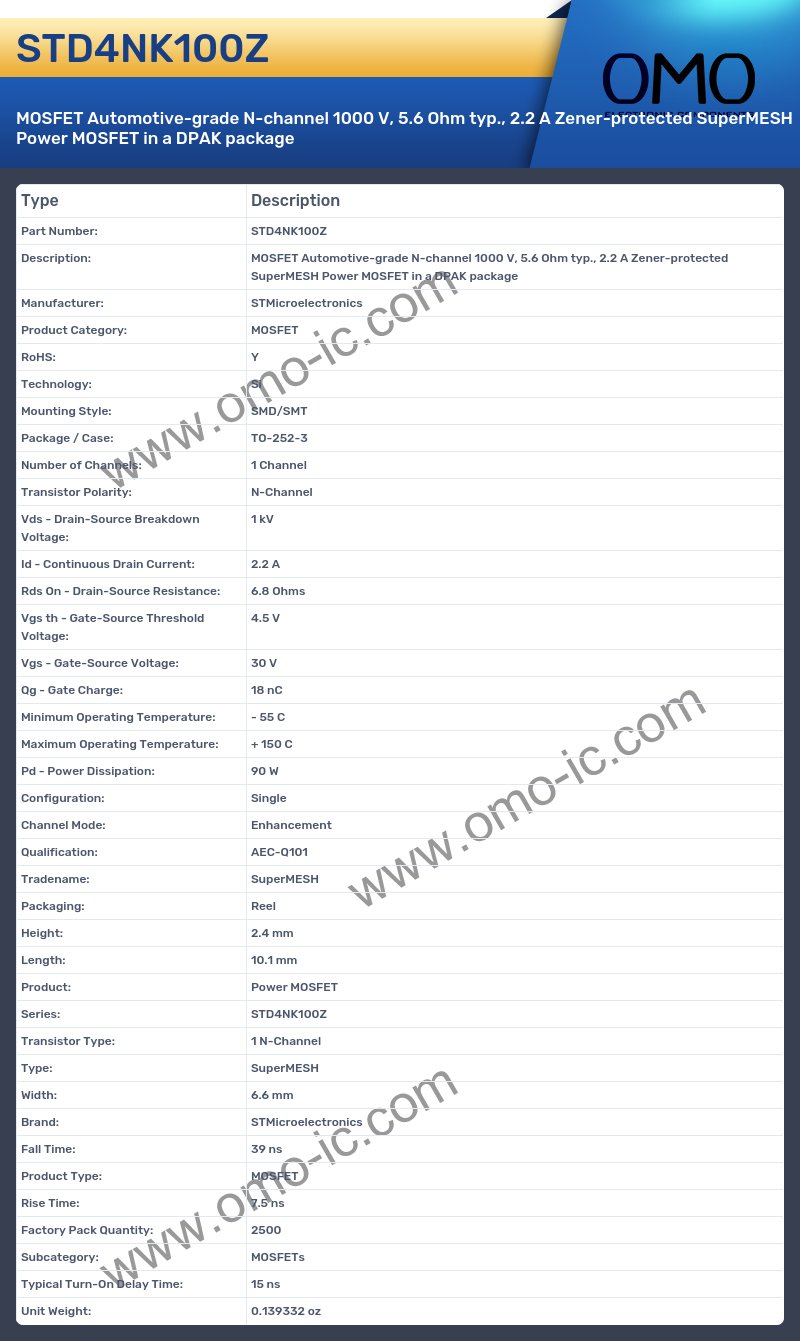

STD4NK100Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 1 kV
• Id - Continuous Drain Current: 2.2 A
• Rds On - Drain-Source Resistance: 6.8 Ohms
• Vgs th - Gate-Source Threshold Voltage: 4.5 V
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 18 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 90 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: SuperMESH
• Packaging: Reel
• Height: 2.4 mm
• Length: 10.1 mm
• Product: Power MOSFET
• Series: STD4NK100Z
• Transistor Type: 1 N-Channel
• Type: SuperMESH
• Width: 6.6 mm
• Brand: STMicroelectronics
• Fall Time: 39 ns
• Product Type: MOSFET
• Rise Time: 7.5 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-On Delay Time: 15 ns
• Unit Weight: 0.139332 oz
