STD70N10F4

STD70N10F4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 60 A continuous drain current Rds On value of 19.5 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 125 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 6.6 mm long The Transistor Type is 1 N-Channel Power MOSFET. This device belongs to the Power MOSFETs type. STMicroelectronics is a trusted brand for quality electronics 20 ns fall time MOSFET product type Rise Time is 20 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 65 ns. The typical turn-on delay time is 30 ns. 1. 0.139332 oz of Unit Weight

STD70N10F4 Image

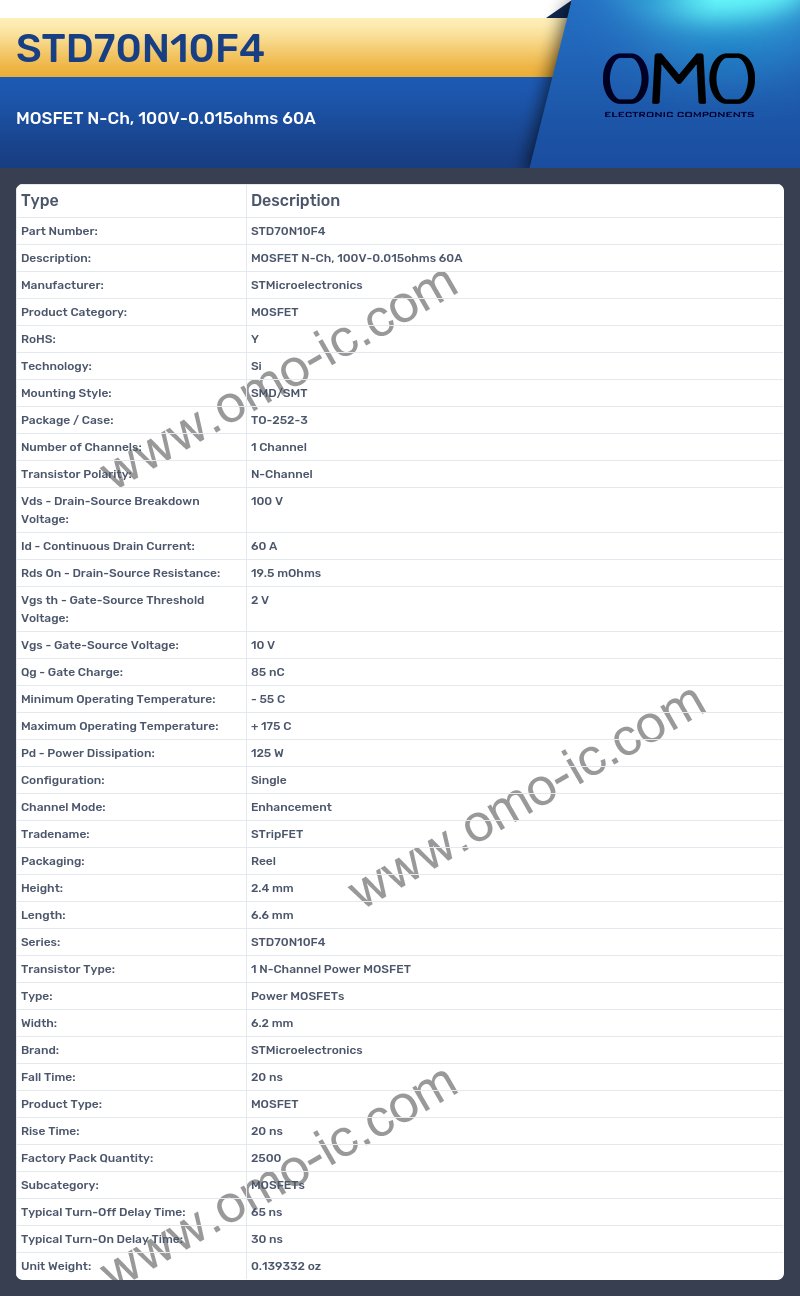

STD70N10F4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 60 A
• Rds On - Drain-Source Resistance: 19.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 85 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 125 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 2.4 mm
• Length: 6.6 mm
• Series: STD70N10F4
• Transistor Type: 1 N-Channel Power MOSFET
• Type: Power MOSFETs
• Width: 6.2 mm
• Brand: STMicroelectronics
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 65 ns
• Typical Turn-On Delay Time: 30 ns
• Unit Weight: 0.139332 oz
