| Mfr. #: | STL76DN4LF7AG |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET Automotive-grade dual N-channel 40 V, 8 mOhm typ.,15 A STripFET F7 Power MOSFET in PowerFLAT 5x6 double island package |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STL76DN4LF7AG Datasheet |
This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT5x6-4 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 40 V 40 A continuous drain current Rds On value of 6 mOhms Gate-Source Threshold Voltage Range: 1.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 71 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The Transistor Type is 2 N-Channel. STMicroelectronics is a trusted brand for quality electronics 10 ns fall time MOSFET product type Rise Time is 4.3 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 39 ns. The typical turn-on delay time is 9 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

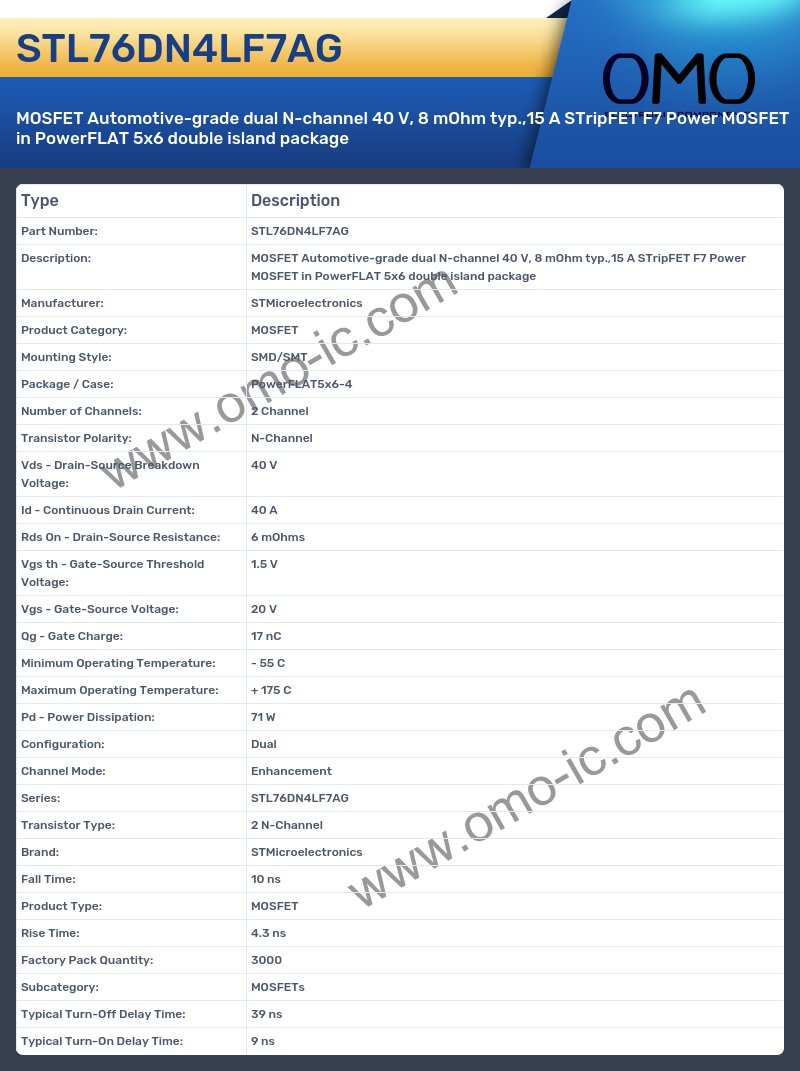

STL76DN4LF7AG Specifications
A: At what frequency does the Manufacturer?
Q: The product Manufacturer is STMicroelectronics.
A: Is the cutoff frequency of the product Mounting Style?
Q: Yes, the product's Mounting Style is indeed SMD/SMT
A: What is the Package / Case of the product?
Q: The Package / Case of the product is PowerFLAT5x6-4.
A: At what frequency does the Number of Channels?
Q: The product Number of Channels is 2 Channel.
A: Is the cutoff frequency of the product Vds - Drain-Source Breakdown Voltage?
Q: Yes, the product's Vds - Drain-Source Breakdown Voltage is indeed 40 V
A: At what frequency does the Id - Continuous Drain Current?
Q: The product Id - Continuous Drain Current is 40 A.
A: At what frequency does the Rds On - Drain-Source Resistance?
Q: The product Rds On - Drain-Source Resistance is 6 mOhms.
A: What is the Vgs th - Gate-Source Threshold Voltage of the product?
Q: The Vgs th - Gate-Source Threshold Voltage of the product is 1.5 V.
A: At what frequency does the Vgs - Gate-Source Voltage?
Q: The product Vgs - Gate-Source Voltage is 20 V.
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is - 55 C.
A: At what frequency does the Maximum Operating Temperature?
Q: The product Maximum Operating Temperature is + 175 C.
A: What is the Pd - Power Dissipation of the product?
Q: The Pd - Power Dissipation of the product is 71 W.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Dual
A: Is the cutoff frequency of the product Channel Mode?
Q: Yes, the product's Channel Mode is indeed Enhancement
A: What is the Transistor Type of the product?
Q: The Transistor Type of the product is 2 N-Channel.
A: At what frequency does the Brand?
Q: The product Brand is STMicroelectronics.
A: What is the Fall Time of the product?
Q: The Fall Time of the product is 10 ns.
A: What is the Product Type of the product?
Q: The Product Type of the product is MOSFET.
A: Is the cutoff frequency of the product Rise Time?
Q: Yes, the product's Rise Time is indeed 4.3 ns
A: At what frequency does the Factory Pack Quantity?
Q: The product Factory Pack Quantity is 3000.
A: Is the cutoff frequency of the product Subcategory?
Q: Yes, the product's Subcategory is indeed MOSFETs
A: What is the Typical Turn-Off Delay Time of the product?
Q: The Typical Turn-Off Delay Time of the product is 39 ns.
A: Is the cutoff frequency of the product Typical Turn-On Delay Time?
Q: Yes, the product's Typical Turn-On Delay Time is indeed 9 ns
