STM6315LBW13F Overview

This product is manufactured by STMicroelectronics. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOT-143-4 package/case type is utilized by this product. 4.63 V threshold voltage range The output type is Active Low, Open Drain. 30 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The accuracy of this product is 1.8 %. Reel packaging for easy dispensing The height of the product is 1.02 mm. 3.04 mm (Max) long STMicroelectronics is a trusted brand for quality electronics 4.7 V is specified as a product attribute. The 4.5 V is a critical parameter in this product. No Chip Enable signal is supported. 320 mW Supervisory Circuits product type 3000 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 1 V

STM6315LBW13F Image

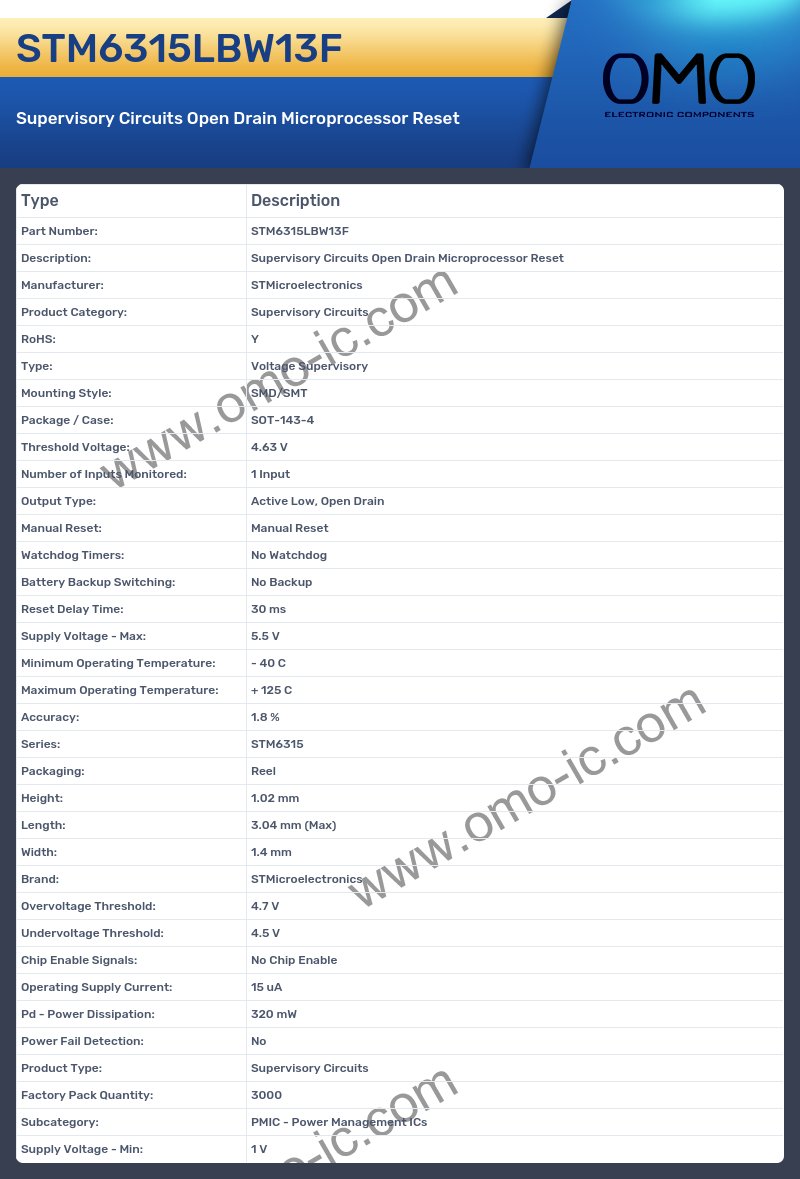

STM6315LBW13F Specifications

• Manufacturer: STMicroelectronics
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOT-143-4
• Threshold Voltage: 4.63 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active Low, Open Drain
• Manual Reset: Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 30 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Accuracy: 1.8 %
• Series: STM6315
• Packaging: Reel
• Height: 1.02 mm
• Length: 3.04 mm (Max)
• Width: 1.4 mm
• Brand: STMicroelectronics
• Overvoltage Threshold: 4.7 V
• Undervoltage Threshold: 4.5 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 15 uA
• Pd - Power Dissipation: 320 mW
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 3000
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 1 V
