STN1N20

STN1N20 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOT-223-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 1 A continuous drain current Rds On value of 1.5 Ohms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.9 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.8 mm. 6.5 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 0.7 S 5 ns fall time MOSFET product type Rise Time is 6 ns. 4000 of 100 MOSFETs as subcategory The typical turn-on delay time is 6 ns. 1. 0.003951 oz of Unit Weight

STN1N20 Image

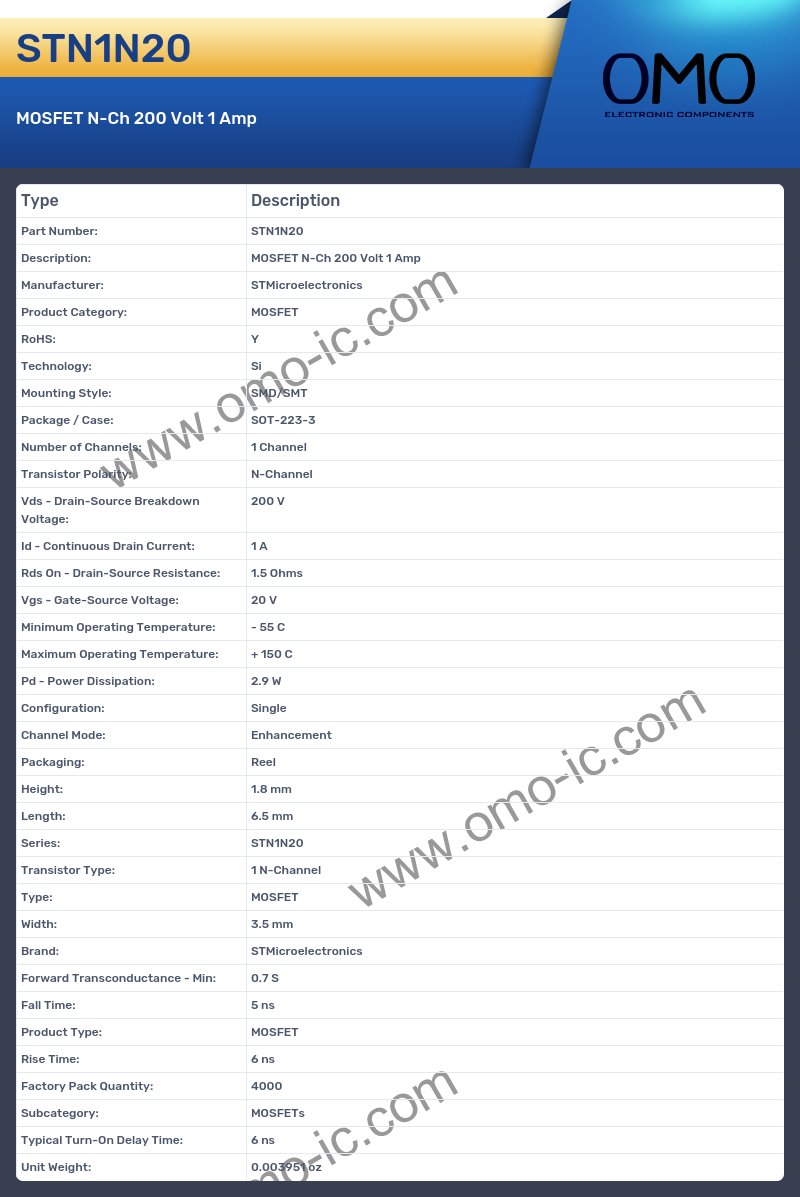

STN1N20 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-223-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 1 A
• Rds On - Drain-Source Resistance: 1.5 Ohms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.9 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.8 mm
• Length: 6.5 mm
• Series: STN1N20
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 3.5 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 0.7 S
• Fall Time: 5 ns
• Product Type: MOSFET
• Rise Time: 6 ns
• Factory Pack Quantity: 4000
• Subcategory: MOSFETs
• Typical Turn-On Delay Time: 6 ns
• Unit Weight: 0.003951 oz
