STN1NK80Z

STN1NK80Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOT-223-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 800 V 250 mA continuous drain current Rds On value of 16 Ohms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.8 mm. 6.5 mm long The Transistor Type is 1 N-Channel MOSFET. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 0.8 S 55 ns fall time MOSFET product type Rise Time is 30 ns. 4000 of 100 MOSFETs as subcategory Turn-off delay time is 22 ns. The typical turn-on delay time is 8 ns. 1. 0.008818 oz of Unit Weight

STN1NK80Z Image

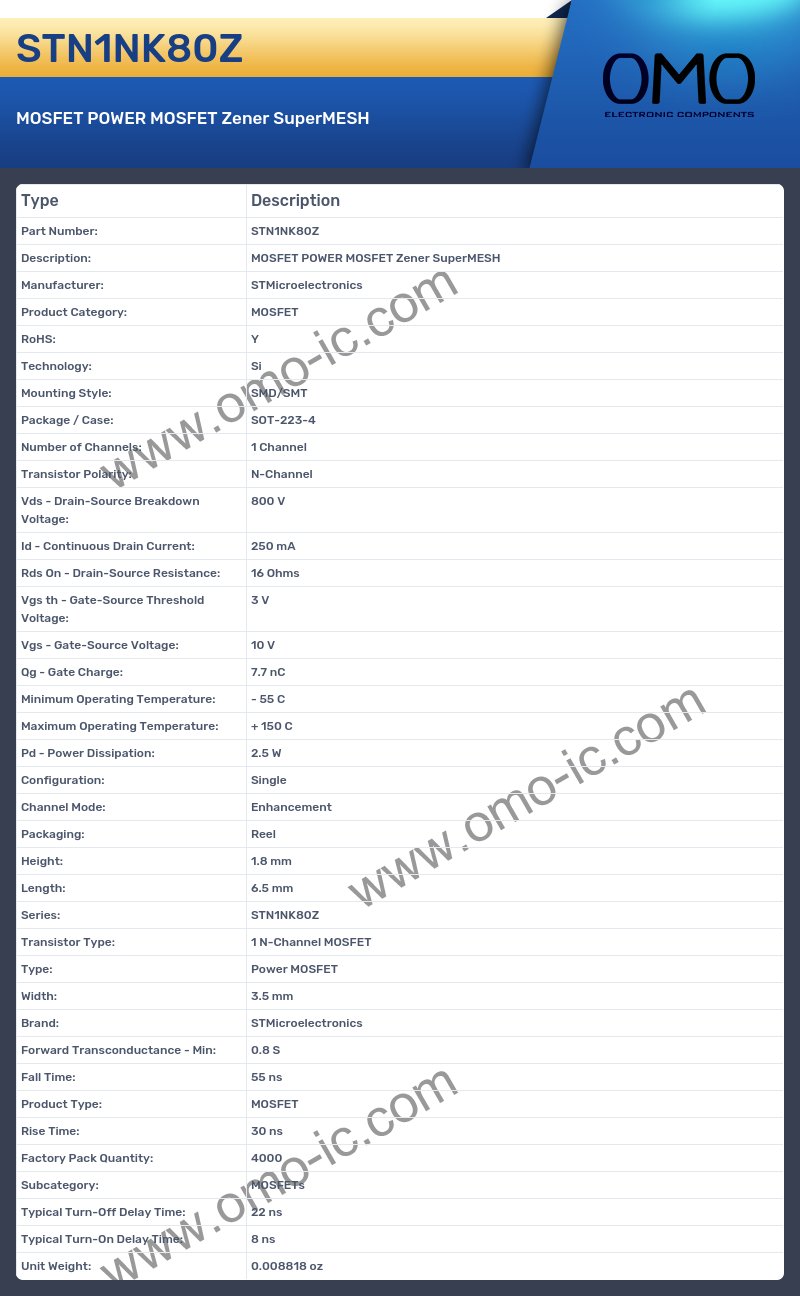

STN1NK80Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-223-4
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 800 V
• Id - Continuous Drain Current: 250 mA
• Rds On - Drain-Source Resistance: 16 Ohms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 7.7 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.8 mm
• Length: 6.5 mm
• Series: STN1NK80Z
• Transistor Type: 1 N-Channel MOSFET
• Type: Power MOSFET
• Width: 3.5 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 0.8 S
• Fall Time: 55 ns
• Product Type: MOSFET
• Rise Time: 30 ns
• Factory Pack Quantity: 4000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 22 ns
• Typical Turn-On Delay Time: 8 ns
• Unit Weight: 0.008818 oz
