STP170N8F7

STP170N8F7 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 80 V 120 A continuous drain current Rds On value of 3.9 mOhms Gate-Source Threshold Voltage Range: 4.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. The height of the product is 4.6 mm. 15.75 mm long Power MOSFET This device belongs to the STripFET F7 type. STMicroelectronics is a trusted brand for quality electronics 37 ns fall time MOSFET product type Rise Time is 53 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 79 ns. The typical turn-on delay time is 38 ns. 1. 0.011640 oz of Unit Weight

STP170N8F7 Image

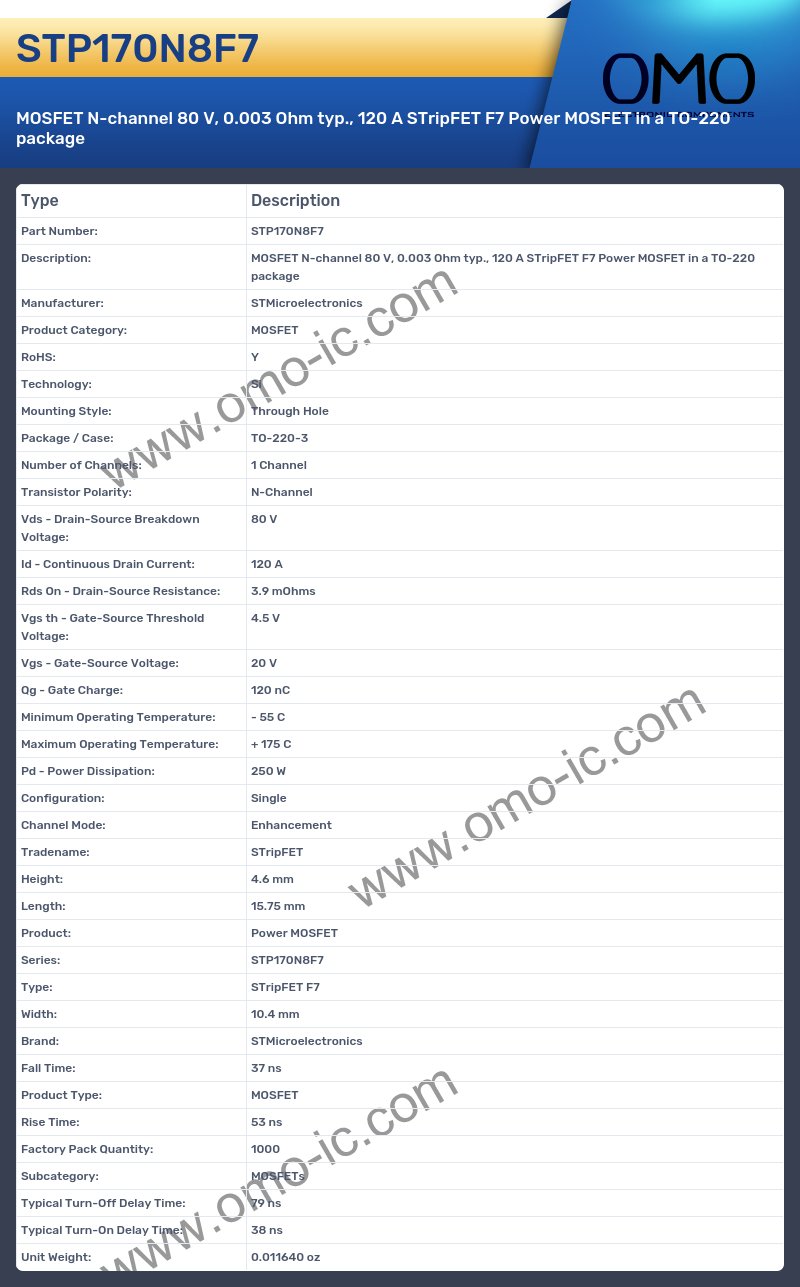

STP170N8F7 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 80 V
• Id - Continuous Drain Current: 120 A
• Rds On - Drain-Source Resistance: 3.9 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 120 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Height: 4.6 mm
• Length: 15.75 mm
• Product: Power MOSFET
• Series: STP170N8F7
• Type: STripFET F7
• Width: 10.4 mm
• Brand: STMicroelectronics
• Fall Time: 37 ns
• Product Type: MOSFET
• Rise Time: 53 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 79 ns
• Typical Turn-On Delay Time: 38 ns
• Unit Weight: 0.011640 oz
