STP85N3LH5

STP85N3LH5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 80 A continuous drain current Rds On value of 5.4 mOhms Gate-Source Voltage: 22 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 70 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 10.8 ns fall time MOSFET product type Rise Time is 14 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 23.6 ns. The typical turn-on delay time is 6 ns. 1. 0.011640 oz of Unit Weight

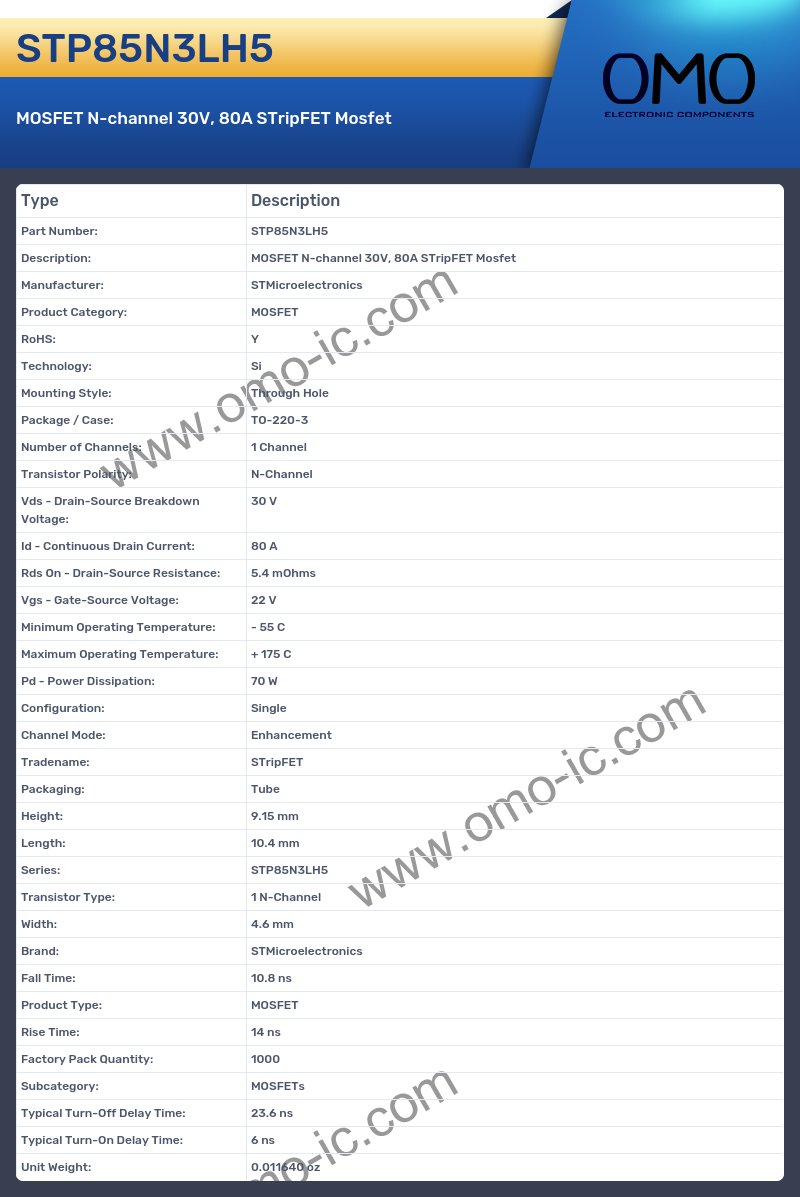

STP85N3LH5 Image

STP85N3LH5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 5.4 mOhms
• Vgs - Gate-Source Voltage: 22 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 70 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Tube
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP85N3LH5
• Transistor Type: 1 N-Channel
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 10.8 ns
• Product Type: MOSFET
• Rise Time: 14 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 23.6 ns
• Typical Turn-On Delay Time: 6 ns
• Unit Weight: 0.011640 oz
