STW3N150

STW3N150 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 1.5 kV 2.5 A continuous drain current Rds On value of 9 Ohms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 10 V The product can operate at a maximum temperature of + 150 C. 140 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's PowerMESH is Blue Gecko. Tube packaging for easy dispensing The height of the product is 20.15 mm. 15.75 mm long The Transistor Type is 1 N-Channel Power MOSFET. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 2.6 S 61 ns fall time MOSFET product type Rise Time is 47 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 24 ns. 1. 1.340411 oz of Unit Weight

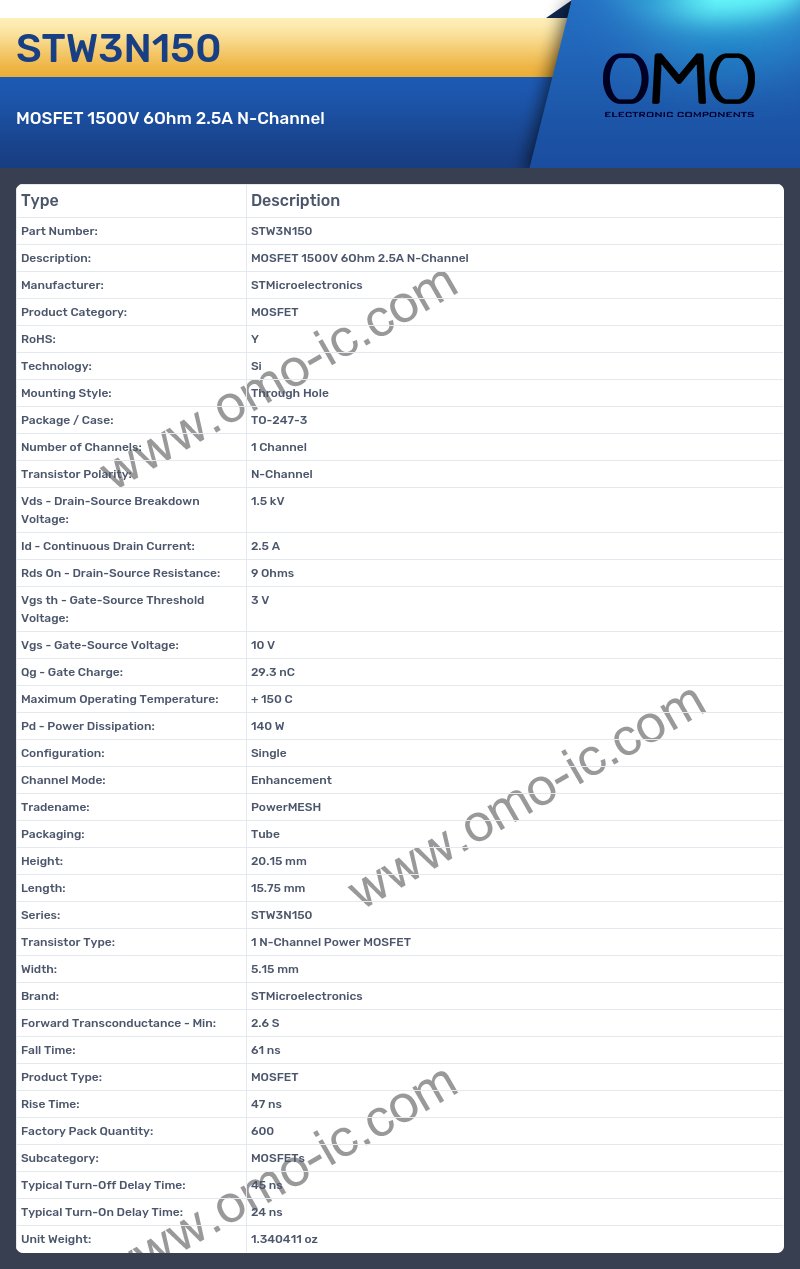

STW3N150 Image

STW3N150 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 1.5 kV
• Id - Continuous Drain Current: 2.5 A
• Rds On - Drain-Source Resistance: 9 Ohms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 29.3 nC
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 140 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: PowerMESH
• Packaging: Tube
• Height: 20.15 mm
• Length: 15.75 mm
• Series: STW3N150
• Transistor Type: 1 N-Channel Power MOSFET
• Width: 5.15 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 2.6 S
• Fall Time: 61 ns
• Product Type: MOSFET
• Rise Time: 47 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 24 ns
• Unit Weight: 1.340411 oz
