TC4424MJA

TC4424MJA Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Low Side type. The product can operate at a maximum temperature of Through Hole. CERDIP-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Rise Time is 35 ns. 35 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V 800 mW The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics CMOS, TTL. 4.5 V to 18 V operating supply voltage range Gate Drivers product type 56 of 100 PMIC - Power Management ICs as subcategory 1. 0.036064 oz of Unit Weight

TC4424MJA Image

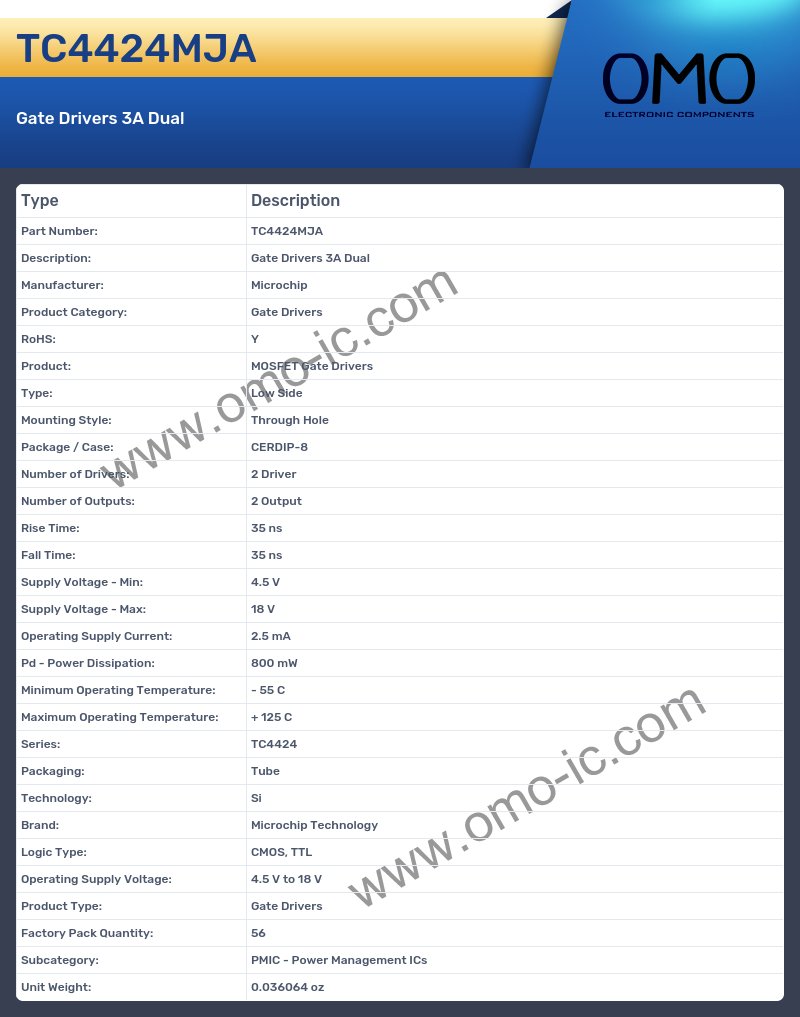

TC4424MJA Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Low Side
• Mounting Style: Through Hole
• Package / Case: CERDIP-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Rise Time: 35 ns
• Fall Time: 35 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 2.5 mA
• Pd - Power Dissipation: 800 mW
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Series: TC4424
• Packaging: Tube
• Technology: Si
• Brand: Microchip Technology
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 56
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.036064 oz
