TCM809MVNB713

TCM809MVNB713 Overview

This product is manufactured by Microchip. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOT-23B-3 package/case type is utilized by this product. 2.5 V, 3 V, 3.3 V, 5 V threshold voltage range The output type is Active Low, Push-Pull. 560 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.02 mm. 3.05 mm (Max) long Output current: 20 mA Microchip Technology is a trusted brand for quality electronics 4.45 V is specified as a product attribute. The 4.31 V is a critical parameter in this product. No Chip Enable signal is supported. 320 mW Supervisory Circuits product type 3000 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 1 V 1. 0.005609 oz of Unit Weight

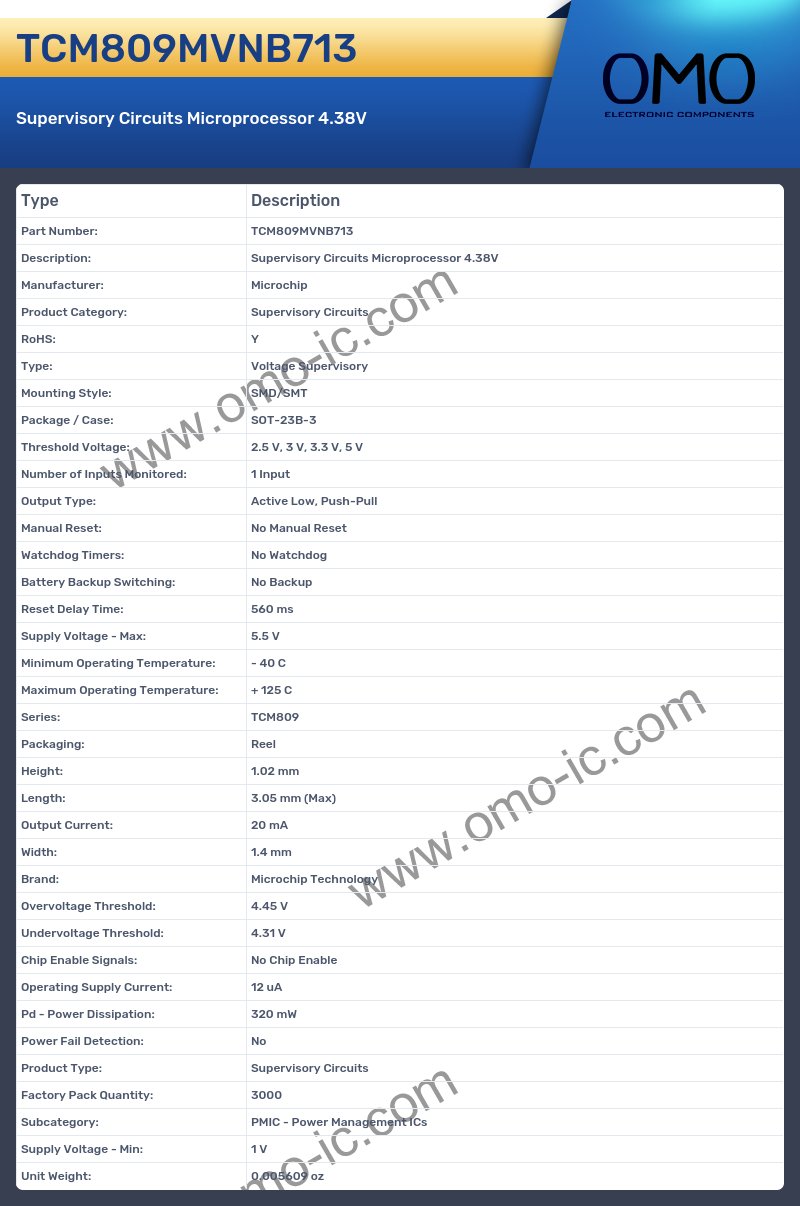

TCM809MVNB713 Image

TCM809MVNB713 Specifications

• Manufacturer: Microchip
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOT-23B-3
• Threshold Voltage: 2.5 V, 3 V, 3.3 V, 5 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active Low, Push-Pull
• Manual Reset: No Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 560 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TCM809
• Packaging: Reel
• Height: 1.02 mm
• Length: 3.05 mm (Max)
• Output Current: 20 mA
• Width: 1.4 mm
• Brand: Microchip Technology
• Overvoltage Threshold: 4.45 V
• Undervoltage Threshold: 4.31 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 12 uA
• Pd - Power Dissipation: 320 mW
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 3000
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 1 V
• Unit Weight: 0.005609 oz
