TLC5946PW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. 3 V to 5.5 V operating supply voltage range Maximum supply current: 45 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5 mA 2026 mW LED Display Drivers product type 50 of 100 Driver ICs as subcategory 1. 0.004145 oz of Unit Weight

TLC5946PW Image

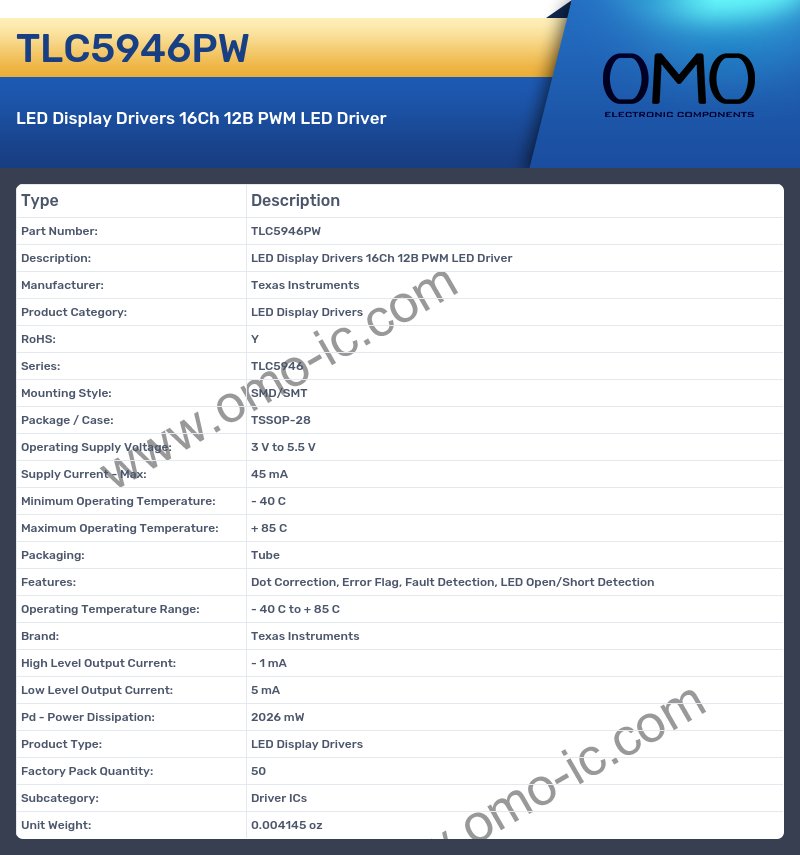

TLC5946PW Specifications

• Manufacturer: Texas Instruments
• Product Category: LED Display Drivers
• RoHS: Y
• Series: TLC5946
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Operating Supply Voltage: 3 V to 5.5 V
• Supply Current - Max: 45 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Dot Correction, Error Flag, Fault Detection, LED Open/Short Detection
• Operating Temperature Range: - 40 C to + 85 C
• Brand: Texas Instruments
• High Level Output Current: - 1 mA
• Low Level Output Current: 5 mA
• Pd - Power Dissipation: 2026 mW
• Product Type: LED Display Drivers
• Factory Pack Quantity: 50
• Subcategory: Driver ICs
• Unit Weight: 0.004145 oz
