TLE2022ACP Overview

This product is manufactured by Texas Instruments. This product is equipped with 2 Channel for efficient performance. This product has a 85 dB to 110 dB of 50 dB, ensuring reliable signal acquisition. This product has an 70 nA of 5 uA for precise signal processing. Supply Voltage - Max: 40 V Supply Voltage - Min: 4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Low Offset Voltage Amplifier. The height of the product is 4.57 mm. Rail-to-Rail input type 9.81 mm long Precision Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.1 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 20 V. +/- 2 V minimum dual supply voltage 4 V to 40 V, +/- 2 V to +/- 20 V operating supply voltage range 1000 mW Precision Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.015535 oz of Unit Weight

TLE2022ACP Image

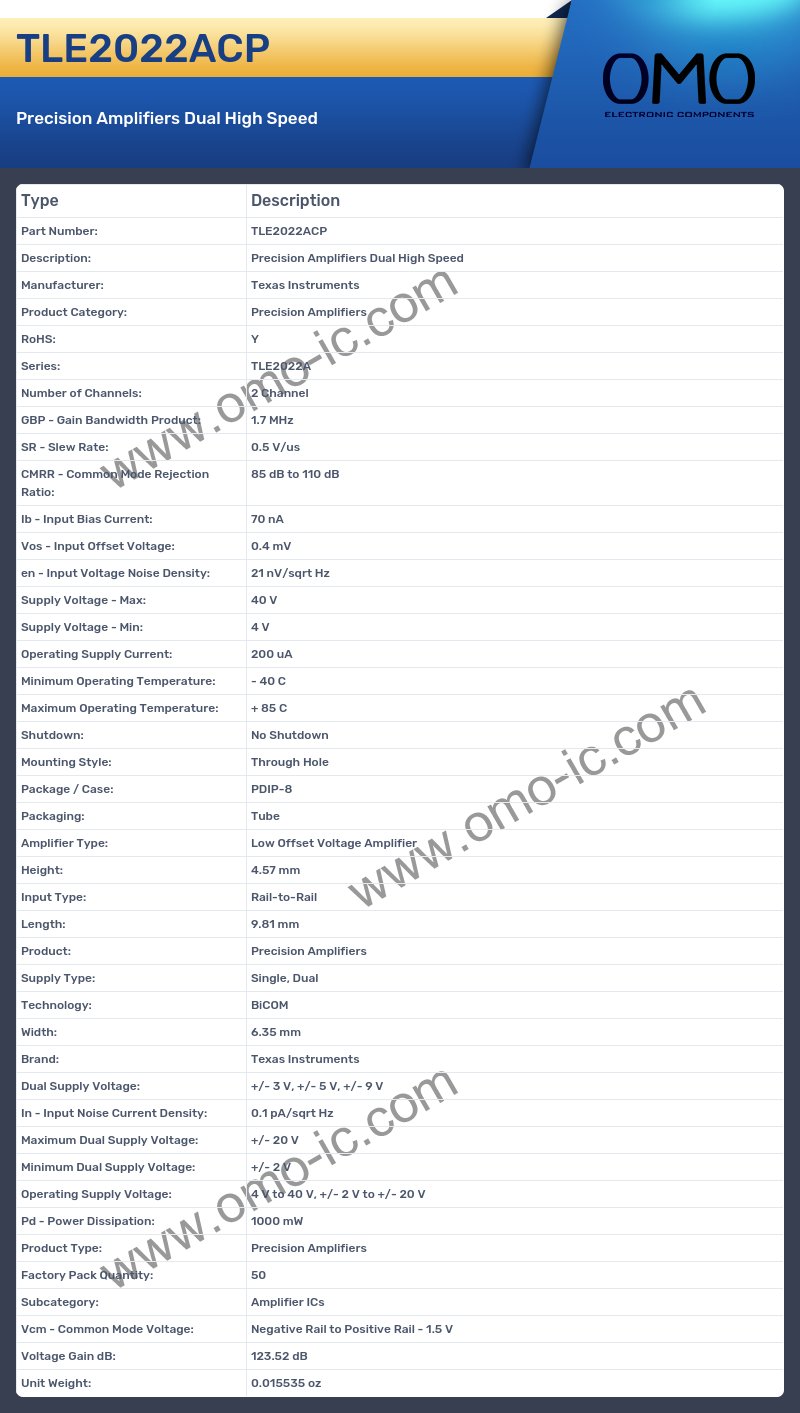

TLE2022ACP Specifications

• Manufacturer: Texas Instruments
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: TLE2022A
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 1.7 MHz
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 85 dB to 110 dB
• Ib - Input Bias Current: 70 nA
• Vos - Input Offset Voltage: 0.4 mV
• en - Input Voltage Noise Density: 21 nV/sqrt Hz
• Supply Voltage - Max: 40 V
• Supply Voltage - Min: 4 V
• Operating Supply Current: 200 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Low Offset Voltage Amplifier
• Height: 4.57 mm
• Input Type: Rail-to-Rail
• Length: 9.81 mm
• Product: Precision Amplifiers
• Supply Type: Single, Dual
• Technology: BiCOM
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• In - Input Noise Current Density: 0.1 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 20 V
• Minimum Dual Supply Voltage: +/- 2 V
• Operating Supply Voltage: 4 V to 40 V, +/- 2 V to +/- 20 V
• Pd - Power Dissipation: 1000 mW
• Product Type: Precision Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 123.52 dB
• Unit Weight: 0.015535 oz
