TLV2422CPWR

TLV2422CPWR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. Supply Voltage - Max: 10 V This product is equipped with 2 Channel for efficient performance. This product has a 70 dB to 83 dB of 50 dB, ensuring reliable signal acquisition. This product has an 60 pA of 5 uA for precise signal processing. Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Reel packaging for easy dispensing The amplifier type is Micropower Amplifier. The height of the product is 1.15 mm. Rail-to-Rail input type 3 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 5 V. +/- 1.35 V minimum dual supply voltage 2.7 V to 10 V, +/- 1.35 V to +/- 5 V operating supply voltage range 525 mW Op Amps - Operational Amplifiers product type 2000 of 100 Amplifier ICs as subcategory The product's LinCMOS is Blue Gecko. 1. 0.001376 oz of Unit Weight

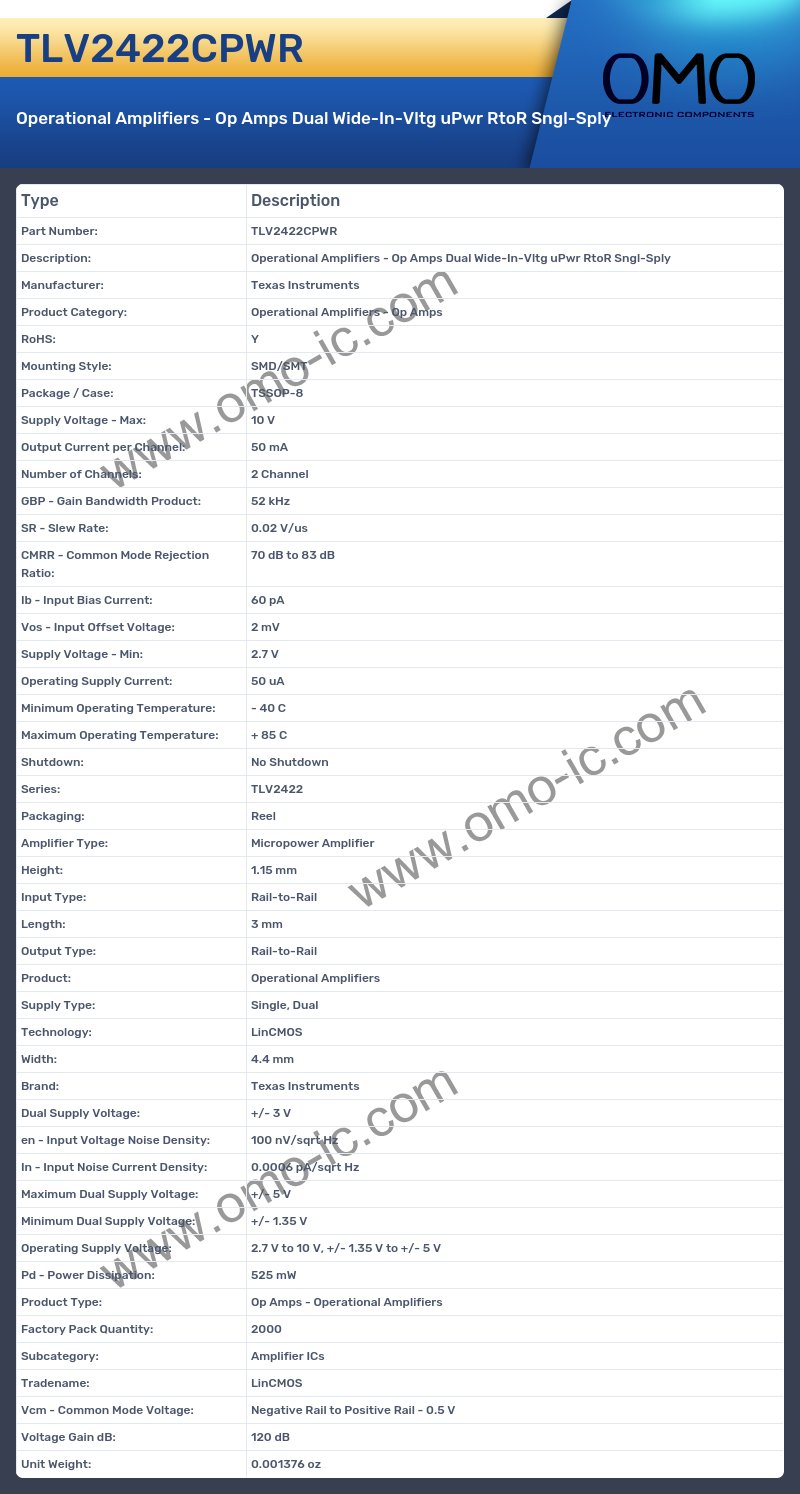

TLV2422CPWR Image

TLV2422CPWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Supply Voltage - Max: 10 V
• Output Current per Channel: 50 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 52 kHz
• SR - Slew Rate: 0.02 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 83 dB
• Ib - Input Bias Current: 60 pA
• Vos - Input Offset Voltage: 2 mV
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 50 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: TLV2422
• Packaging: Reel
• Amplifier Type: Micropower Amplifier
• Height: 1.15 mm
• Input Type: Rail-to-Rail
• Length: 3 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: LinCMOS
• Width: 4.4 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V
• en - Input Voltage Noise Density: 100 nV/sqrt Hz
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 5 V
• Minimum Dual Supply Voltage: +/- 1.35 V
• Operating Supply Voltage: 2.7 V to 10 V, +/- 1.35 V to +/- 5 V
• Pd - Power Dissipation: 525 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 2000
• Subcategory: Amplifier ICs
• Tradename: LinCMOS
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 0.5 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.001376 oz
