TN22-1500R Overview

This product is manufactured by STMicroelectronics. The VDRM for this product is 400 V. The Off-State Leakage Current @ VDRM IDRM is 100 uA. 2 A It RMS On-State RMS Current The 6 V maximum gate peak inverse voltage 3 V is the Gate Trigger Voltage - Vgt. 1.5 mA. Max Holding Current 175 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 110 C. The product can operate at a maximum temperature of Through Hole. IPAK-3 package/case type is utilized by this product. STMicroelectronics is a trusted brand for quality electronics 22 A Non Repetitive On-State Current SCRs product type 1000 of 100 Thyristors as subcategory 1. 0.139332 oz of Unit Weight

TN22-1500R Image

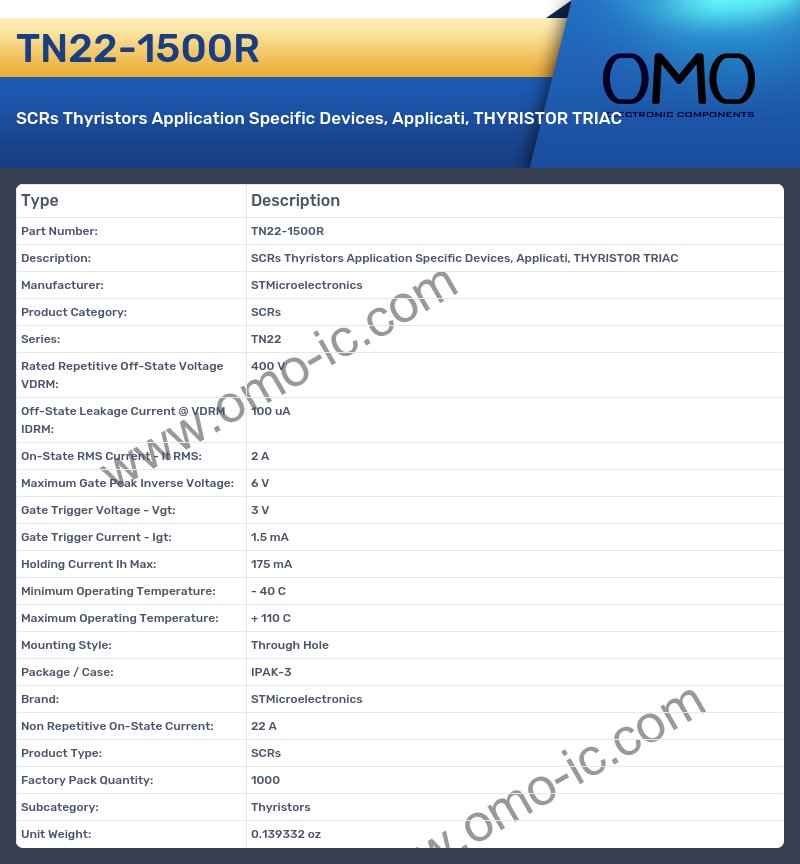

TN22-1500R Specifications

• Manufacturer: STMicroelectronics
• Product Category: SCRs
• Series: TN22
• Rated Repetitive Off-State Voltage VDRM: 400 V
• Off-State Leakage Current @ VDRM IDRM: 100 uA
• On-State RMS Current - It RMS: 2 A
• Maximum Gate Peak Inverse Voltage: 6 V
• Gate Trigger Voltage - Vgt: 3 V
• Gate Trigger Current - Igt: 1.5 mA
• Holding Current Ih Max: 175 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 110 C
• Mounting Style: Through Hole
• Package / Case: IPAK-3
• Brand: STMicroelectronics
• Non Repetitive On-State Current: 22 A
• Product Type: SCRs
• Factory Pack Quantity: 1000
• Subcategory: Thyristors
• Unit Weight: 0.139332 oz
