TPS2814PWR

TPS2814PWR Overview

This product is manufactured by Texas Instruments. MOSFET Gate Drivers This device belongs to the Inverting type. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 2 A Rise Time is 14 ns. 15 ns fall time Supply Voltage - Min: 4 V Supply Voltage - Max: 14 V 520 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics CMOS. 4 V to 14 V operating supply voltage range Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001376 oz of Unit Weight

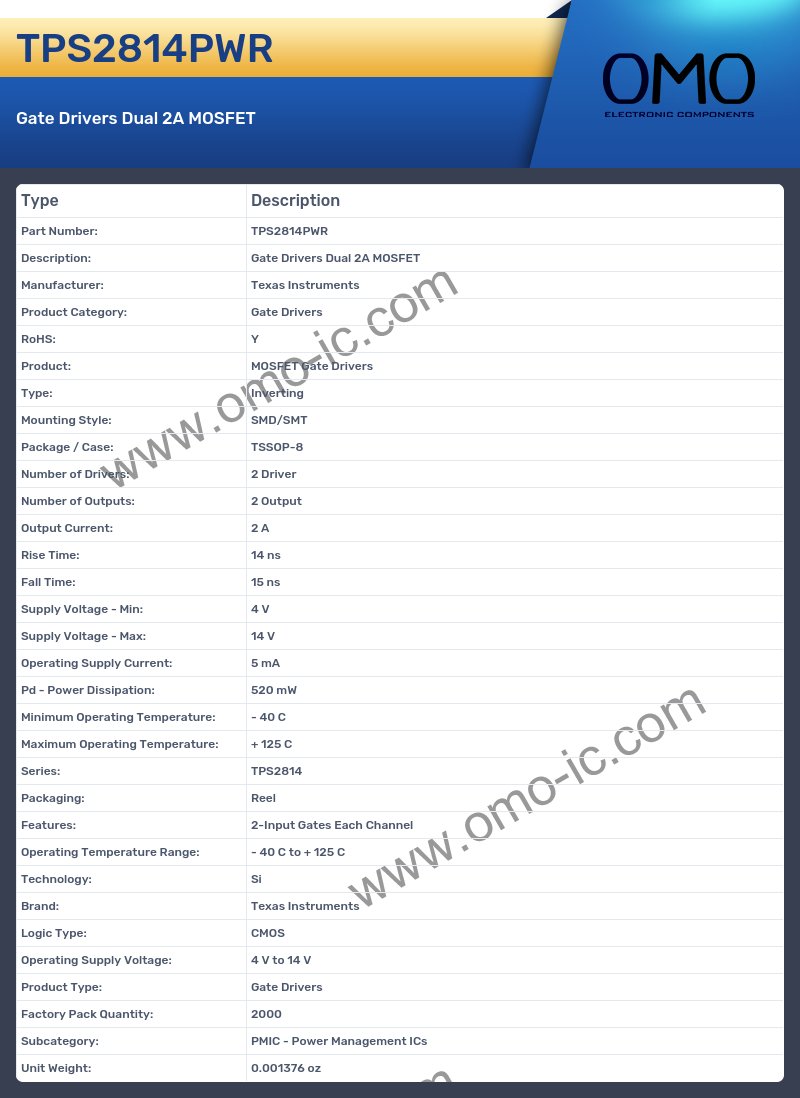

TPS2814PWR Image

TPS2814PWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Inverting
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 2 A
• Rise Time: 14 ns
• Fall Time: 15 ns
• Supply Voltage - Min: 4 V
• Supply Voltage - Max: 14 V
• Operating Supply Current: 5 mA
• Pd - Power Dissipation: 520 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPS2814
• Packaging: Reel
• Features: 2-Input Gates Each Channel
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Operating Supply Voltage: 4 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001376 oz
