TS522IDT

TS522IDT Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. Supply Voltage - Max: 30 V This product is equipped with 2 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 750 nA of 5 uA for precise signal processing. Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Reel packaging for easy dispensing The amplifier type is Low Noise Amplifier. The height of the product is 1.65 mm. 5 mm long Operational Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics The 0.5 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 15 V. +/- 2.5 V minimum dual supply voltage 5 V to 30 V, +/- 2.5 V to +/- 15 V operating supply voltage range 500 mW (1/2 W) Op Amps - Operational Amplifiers product type 2500 of 100 Amplifier ICs as subcategory 1. 0.017870 oz of Unit Weight

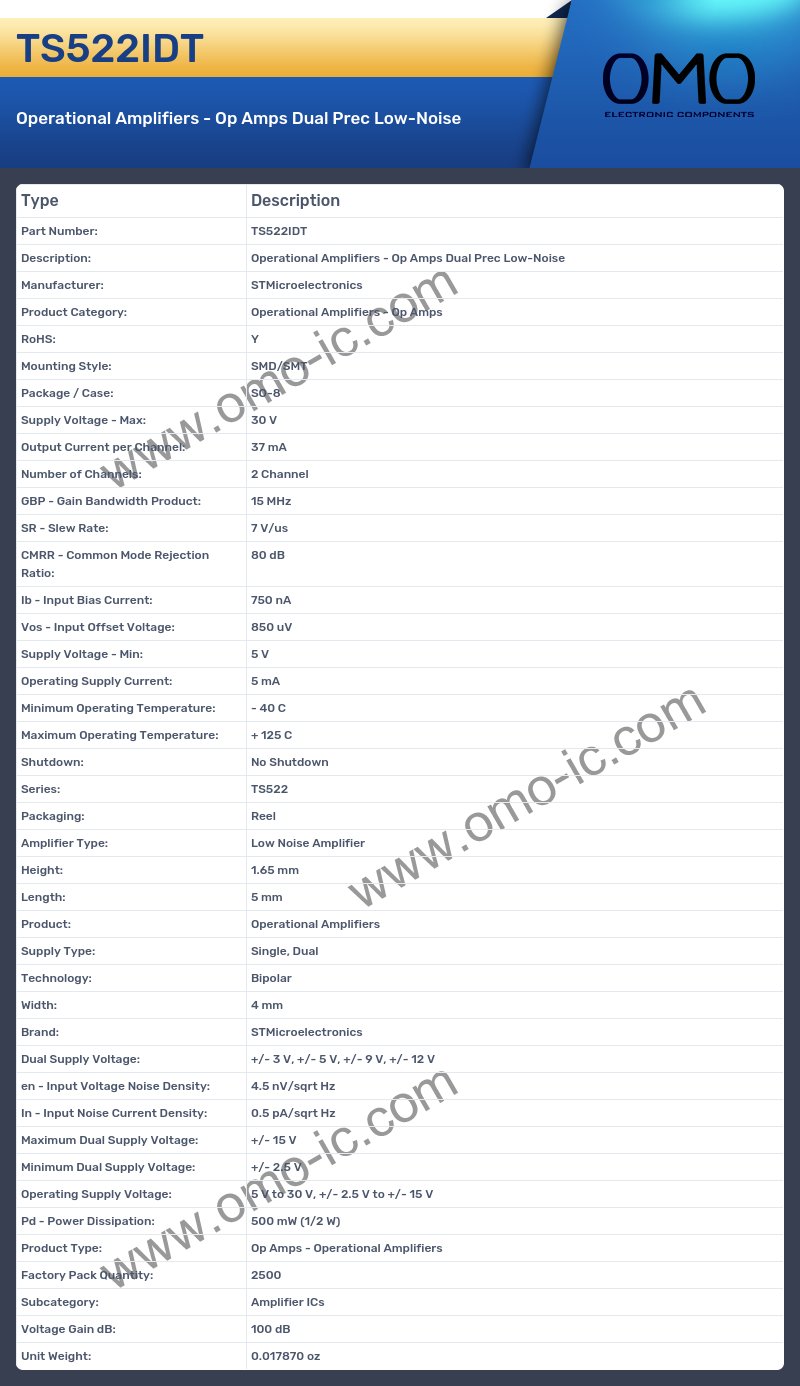

TS522IDT Image

TS522IDT Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Supply Voltage - Max: 30 V
• Output Current per Channel: 37 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 15 MHz
• SR - Slew Rate: 7 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 750 nA
• Vos - Input Offset Voltage: 850 uV
• Supply Voltage - Min: 5 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: TS522
• Packaging: Reel
• Amplifier Type: Low Noise Amplifier
• Height: 1.65 mm
• Length: 5 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 4 mm
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 4.5 nV/sqrt Hz
• In - Input Noise Current Density: 0.5 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: 5 V to 30 V, +/- 2.5 V to +/- 15 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.017870 oz
