UC2524ADWTR

UC2524ADWTR Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 500 kHz is 60 kHz. 8 V to 40 V Input Voltage Output Voltage is 60 V Output current: 200 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 2.35 mm. Non-Isolated is the isolation property. 10.28 mm long Switching Controllers This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 25 ns fall time Yes regarding Moisture Sensitivity Switching Controllers product type Rise Time is 120 ns. 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.016709 oz of Unit Weight

UC2524ADWTR Image

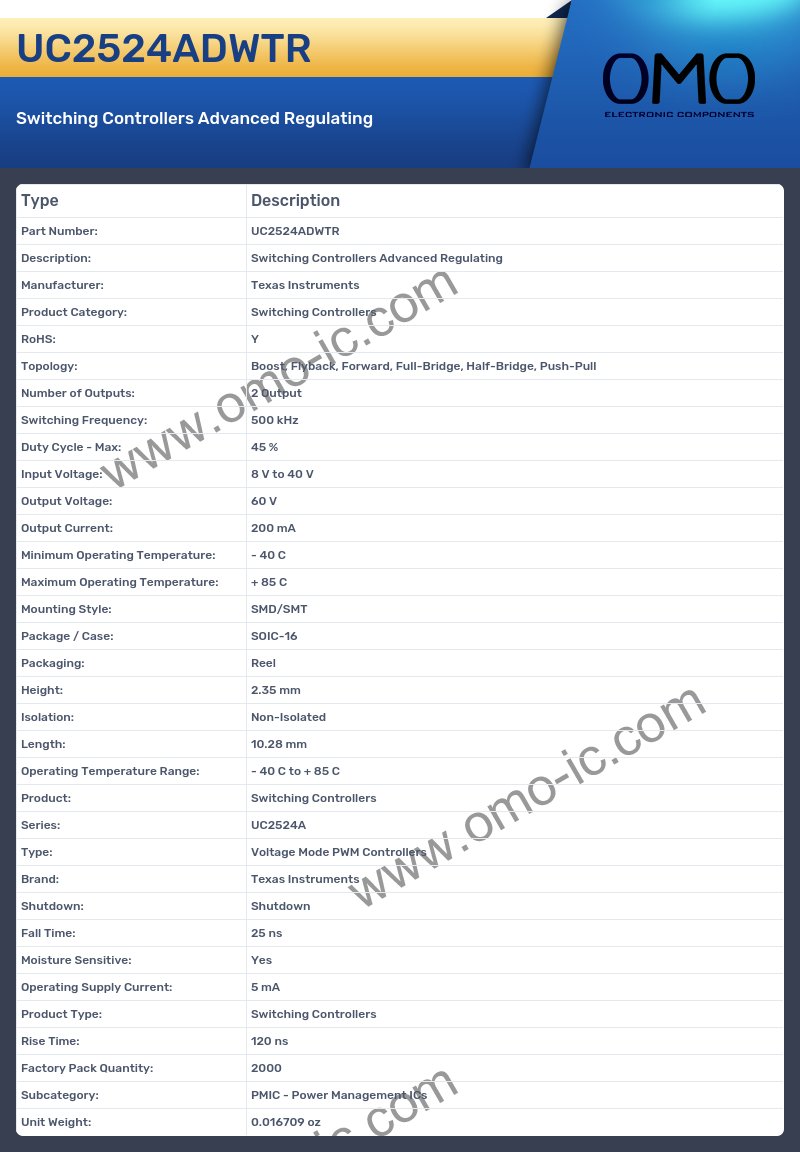

UC2524ADWTR Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 500 kHz
• Duty Cycle - Max: 45 %
• Input Voltage: 8 V to 40 V
• Output Voltage: 60 V
• Output Current: 200 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Reel
• Height: 2.35 mm
• Isolation: Non-Isolated
• Length: 10.28 mm
• Operating Temperature Range: - 40 C to + 85 C
• Product: Switching Controllers
• Series: UC2524A
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 25 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 5 mA
• Product Type: Switching Controllers
• Rise Time: 120 ns
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.016709 oz
