UCD7232RTJT

UCD7232RTJT Overview

This product is manufactured by Texas Instruments. MOSFET Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. QFN-20 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 6 A This product has a Dual configuration. Rise Time is 30 ns. 20 ns fall time Supply Voltage - Min: 4.7 V Supply Voltage - Max: 15 V 183 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Output Voltage is 500 mV Texas Instruments is a trusted brand for quality electronics CMOS, TTL. Yes regarding Moisture Sensitivity 4.7 V to 15 V operating supply voltage range Gate Drivers product type 250 of 100 PMIC - Power Management ICs as subcategory 1. 0.001344 oz of Unit Weight

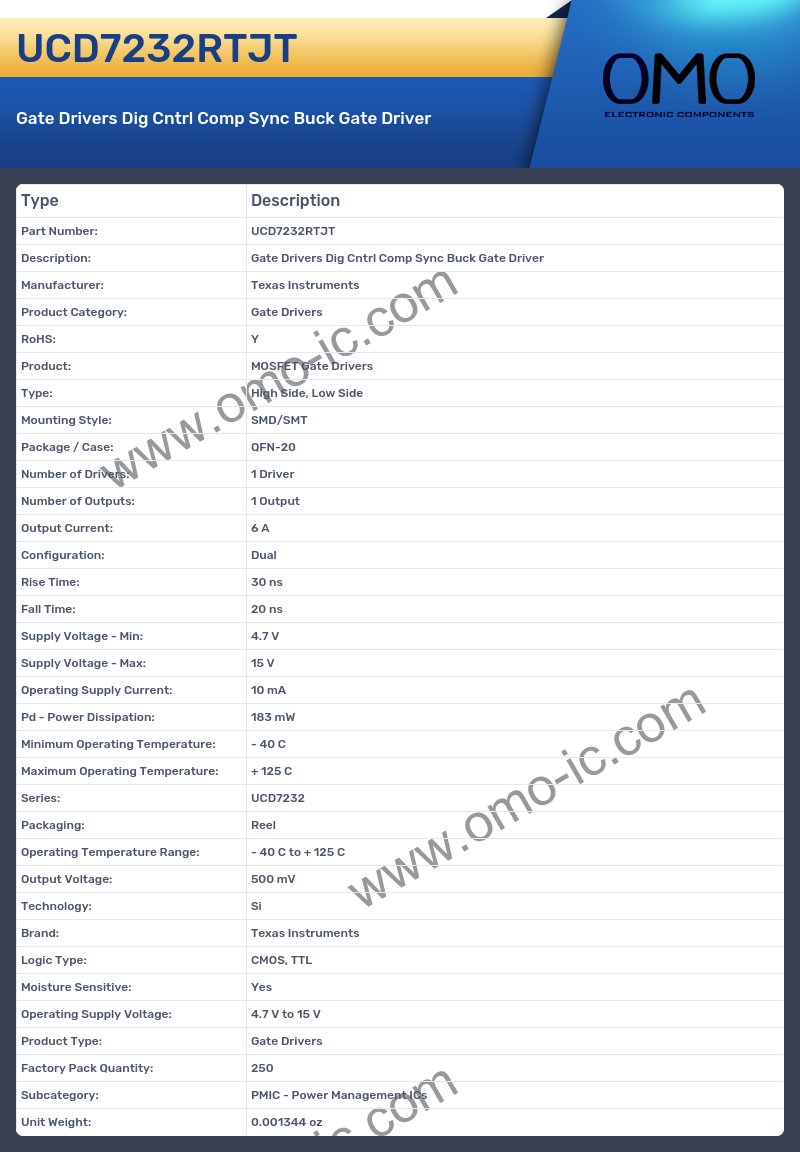

UCD7232RTJT Image

UCD7232RTJT Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: QFN-20
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 6 A
• Configuration: Dual
• Rise Time: 30 ns
• Fall Time: 20 ns
• Supply Voltage - Min: 4.7 V
• Supply Voltage - Max: 15 V
• Operating Supply Current: 10 mA
• Pd - Power Dissipation: 183 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCD7232
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 500 mV
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.7 V to 15 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 250
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001344 oz
