| Mfr. #: | ACS120-7SB-TR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Triacs AC LINE SWITCH |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | ACS120-7SB-TR Datasheet |

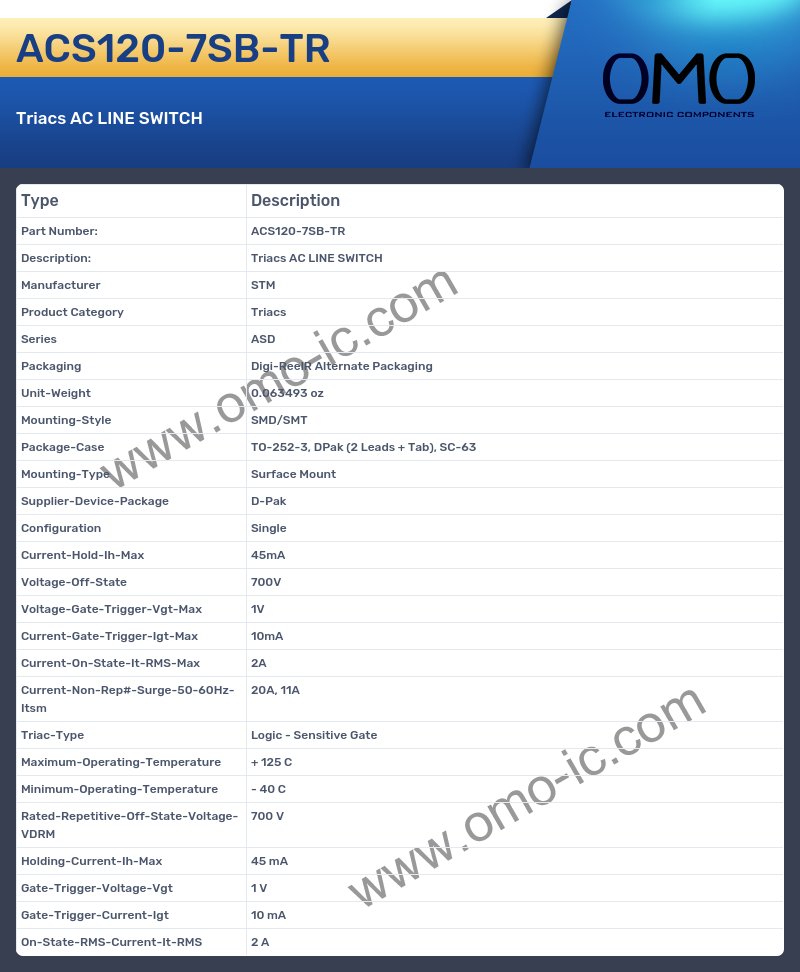

Product belongs to the ASD series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single 45mA of Current-Hold-Ih-Max The Voltage-Off-State is 700V. Voltage-Gate-Trigger-Vgt-Max 1V 10mA of Current-Gate-Trigger-Igt-Max 2A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 20A, 11A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 700 V Rated Repetitive Off-State Voltage VDRM; 45 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1 V on this product. Gate-Trigger-Current-Igt: 10 mA; 2 A RMS Current On-State
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ACS120-7SB-TR Specifications
