ADC0809CCVX

ADC0809CCVX Overview

Product belongs to the ADC0809-N series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: TTL Number of channels: 8 Channel Supplier device package: 28-PLCC (11.51x11.51) This product's 10k. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 4.5 V ~ 6.5 V. The Voltage Supply Digital for this product is 4.5 V ~ 6.5 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 875 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 15 mW. Parallel interface type Number-of-Converters: 1 Converter 10 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 5 V Integral Nonlinearity: 0.5 LSB

ADC0809CCVX Image

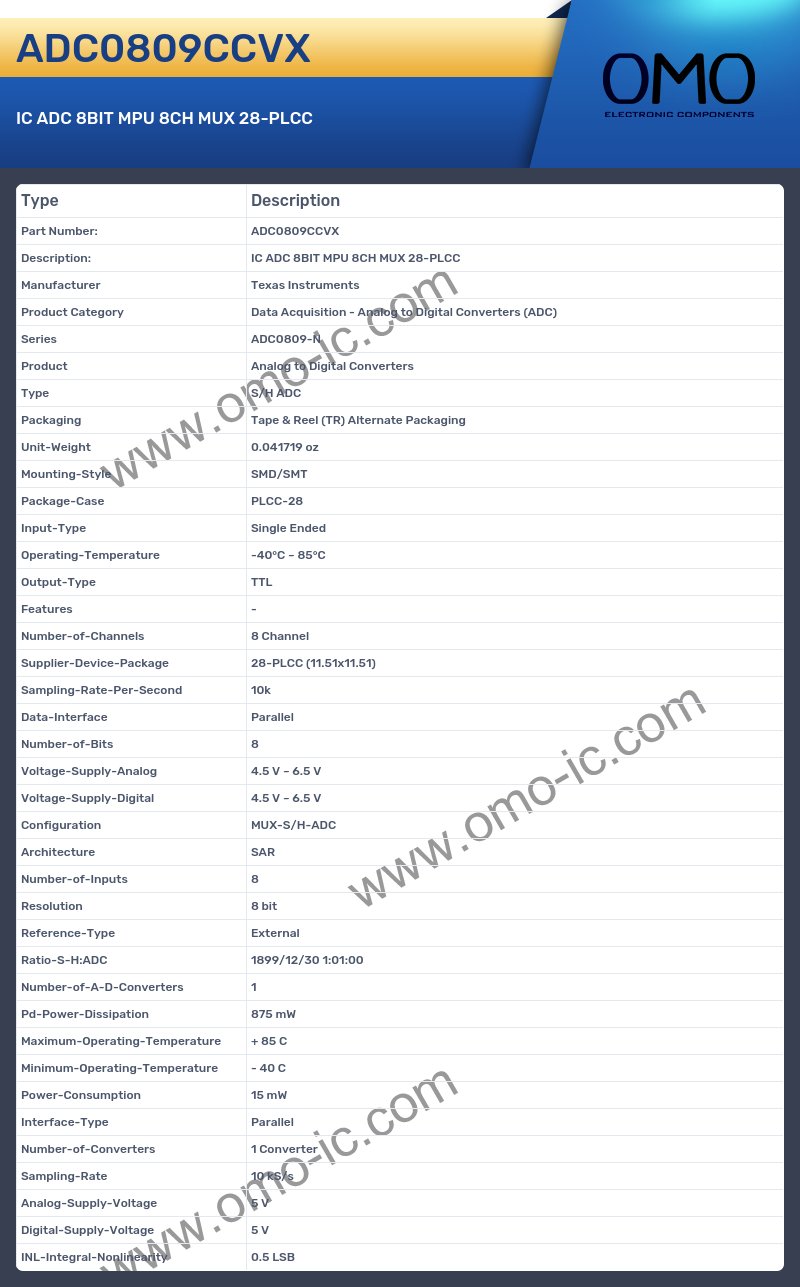

ADC0809CCVX Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC0809-N
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Output-Type TTL
• Features -
• Number-of-Channels 8 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Sampling-Rate-Per-Second 10k
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 4.5 V ~ 6.5 V
• Voltage-Supply-Digital 4.5 V ~ 6.5 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 8
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 875 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 15 mW
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• Sampling-Rate 10 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 5 V
• INL-Integral-Nonlinearity 0.5 LSB
