| Mfr. #: | ADC12D1600CIUT |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Analog to Digital Converters - ADC 12B 2.0/3.2 GSPS Ultra Hi-Spd ADC |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | ADC12D1600CIUT Datasheet |
Product belongs to the ADC12D1600 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray is the packaging method for this product SMD/SMT Mounting-Style BGA-292 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 2 Channel Supplier device package: 292-BGA (27x27) This product's 3.2G. Data-Interface: LVDS - Parallel 12 bits The Voltage-Supply-Analog is 1.8 V ~ 2 V. The Voltage Supply Digital for this product is 1.8 V ~ 2 V. Configuration MUX-S/H-ADC The architecture of this product is Folding Interpolating . Internal is the reference type. 2 units Power-off control: 4.37 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 3800 mW. Parallel Serial SPI interface type Signal-to-Noise Ratio of 58.6 dB The ADC12D1600RB. Number-of-Converters: 2 Converter 3.2 GS/s Sampling Rate Analog supply voltage: 1.9 V Digital Supply Voltage: 1.8 V to 2 V Integral Nonlinearity: 2.5 LSB Differential nonlinearity: 0.4 LSB
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

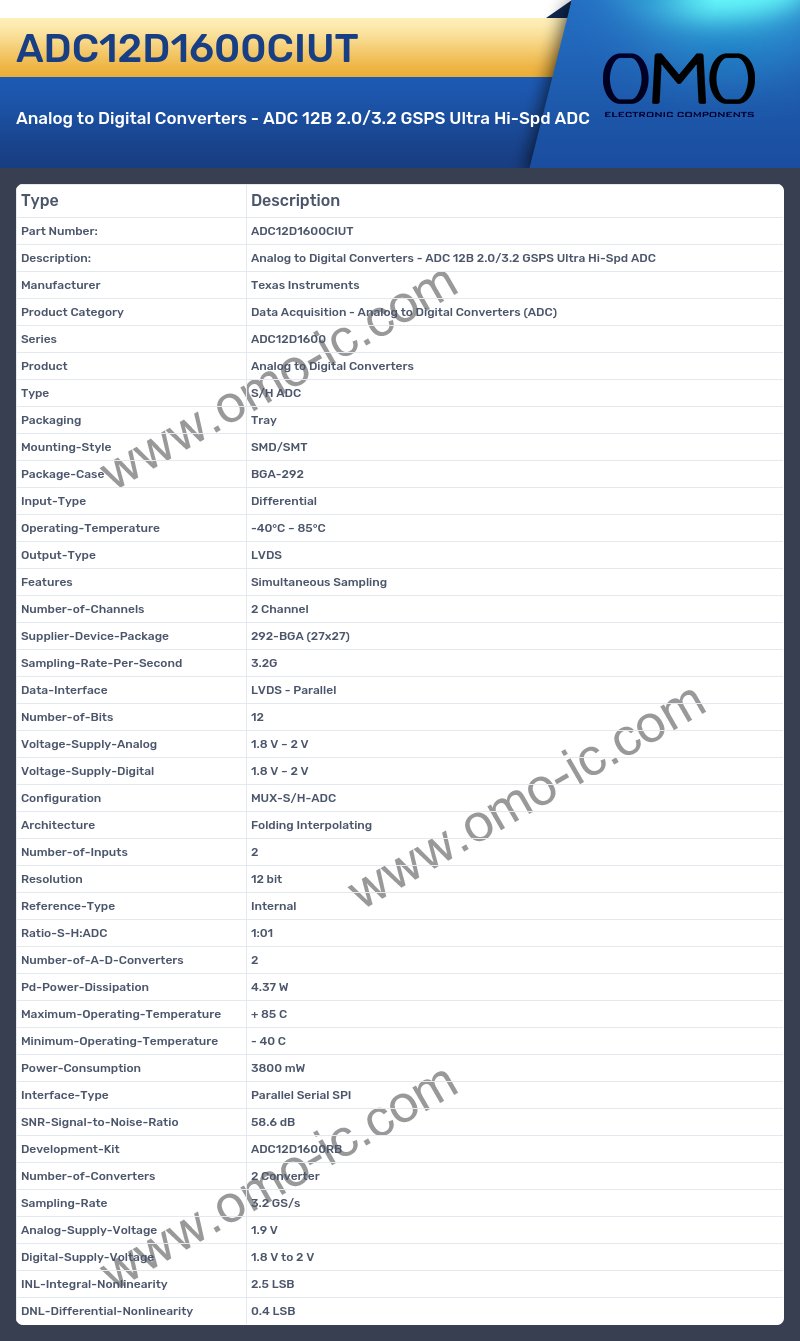

ADC12D1600CIUT Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ADC12D1600
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Analog to Digital Converters
A: At what frequency does the Type?
Q: The product Type is S/H ADC.
A: At what frequency does the Packaging?
Q: The product Packaging is Tray.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is BGA-292.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Differential.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is LVDS.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 2 Channel
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 292-BGA (27x27)
A: At what frequency does the Sampling-Rate-Per-Second?
Q: The product Sampling-Rate-Per-Second is 3.2G.
A: What is the Data-Interface of the product?
Q: The Data-Interface of the product is LVDS - Parallel.
A: What is the Number-of-Bits of the product?
Q: The Number-of-Bits of the product is 12.
A: Is the cutoff frequency of the product Voltage-Supply-Analog?
Q: Yes, the product's Voltage-Supply-Analog is indeed 1.8 V ~ 2 V
A: At what frequency does the Voltage-Supply-Digital?
Q: The product Voltage-Supply-Digital is 1.8 V ~ 2 V.
A: At what frequency does the Configuration?
Q: The product Configuration is MUX-S/H-ADC.
A: What is the Architecture of the product?
Q: The Architecture of the product is Folding Interpolating.
A: At what frequency does the Reference-Type?
Q: The product Reference-Type is Internal.
A: What is the Number-of-A-D-Converters of the product?
Q: The Number-of-A-D-Converters of the product is 2.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 4.37 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Power-Consumption?
Q: Yes, the product's Power-Consumption is indeed 3800 mW
A: What is the Interface-Type of the product?
Q: The Interface-Type of the product is Parallel Serial SPI.
A: Is the cutoff frequency of the product SNR-Signal-to-Noise-Ratio?
Q: Yes, the product's SNR-Signal-to-Noise-Ratio is indeed 58.6 dB
A: At what frequency does the Development-Kit?
Q: The product Development-Kit is ADC12D1600RB.
A: Is the cutoff frequency of the product Number-of-Converters?
Q: Yes, the product's Number-of-Converters is indeed 2 Converter
A: What is the Sampling-Rate of the product?
Q: The Sampling-Rate of the product is 3.2 GS/s.
A: At what frequency does the Analog-Supply-Voltage?
Q: The product Analog-Supply-Voltage is 1.9 V.
A: What is the Digital-Supply-Voltage of the product?
Q: The Digital-Supply-Voltage of the product is 1.8 V to 2 V.
A: Is the cutoff frequency of the product INL-Integral-Nonlinearity?
Q: Yes, the product's INL-Integral-Nonlinearity is indeed 2.5 LSB
A: Is the cutoff frequency of the product DNL-Differential-Nonlinearity?
Q: Yes, the product's DNL-Differential-Nonlinearity is indeed 0.4 LSB
