ADS1203IPWT

ADS1203IPWT Overview

Product belongs to the ADS1203 series. This product is categorized as Analog to Digital Converters Type: Modulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Channel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 8-TSSOP Resolution-Bits: 16 b This product's 40k. Data-Interface: Serial Voltage supply source: Analog and digital Single Supply The architecture of this product is Sigma-Delta . External Internal is the reference type. Power-off control: 49 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 85 dB Number-of-Converters: 1 Converter 40 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 4 LSB Differential nonlinearity: +/- 1 LSB

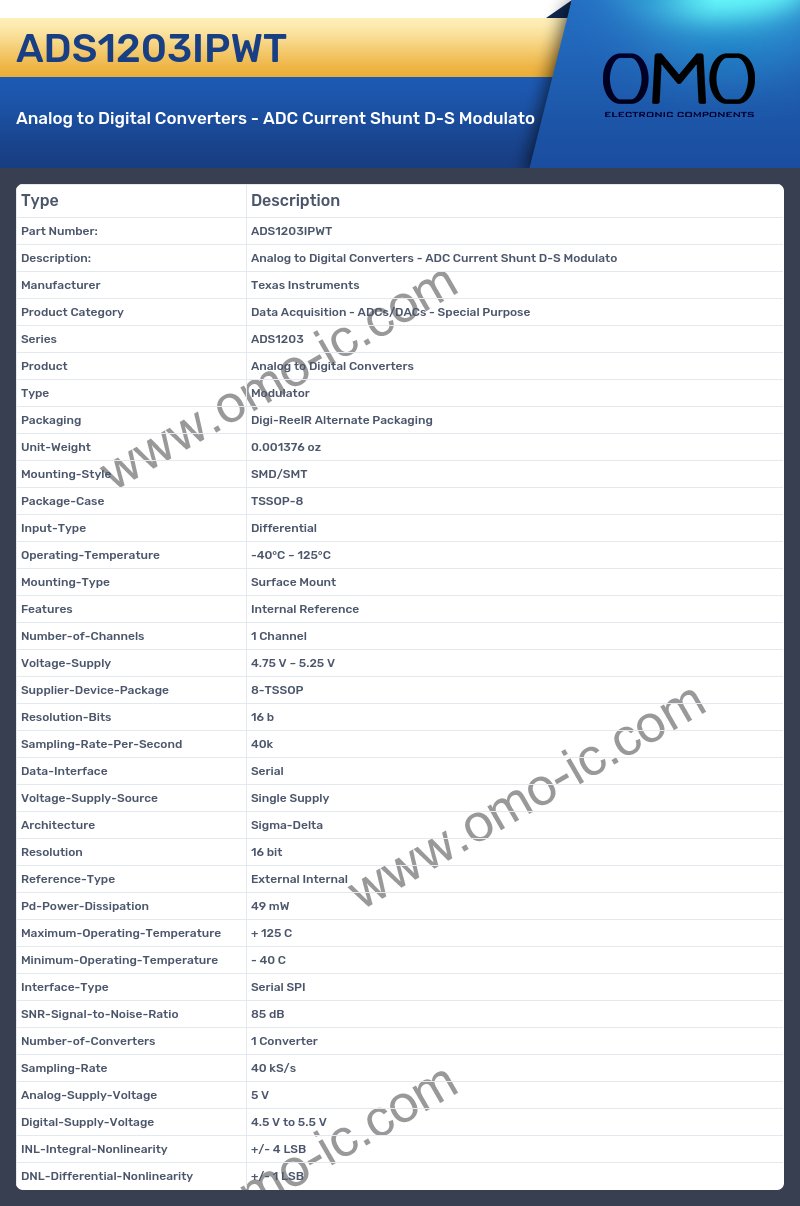

ADS1203IPWT Image

ADS1203IPWT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series ADS1203
• Product Analog to Digital Converters
• Type Modulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Input-Type Differential
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features Internal Reference
• Number-of-Channels 1 Channel
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 8-TSSOP
• Resolution-Bits 16 b
• Sampling-Rate-Per-Second 40k
• Data-Interface Serial
• Voltage-Supply-Source Single Supply
• Architecture Sigma-Delta
• Resolution 16 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 49 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 85 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 4 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
